Description
LEDLamp: Monochrome,Colorful Both Can Be Used,4-9-12All models are directly imported for download effect into the controller,18Road forSDCard Style.Widely Compatible Advertising Light Signs,Signature,Background lighting,font.
Flowing water, Chasing,Scanning,Gradient,Jump Turns,Running Horse,Meteor.
Various effects can be achieved).Engineering-grade quality is more reliable,Excellent service and after-sales support!Technical Guidance Support Without Worries!
Model: 4-9-12-18Road.
Working Voltage: 5V-12V-24V(All are acceptable,Decided based on the voltage of the lamp it comes with).
Workload: 5A/10AEach channel.
(4Road Style Every Road10A,Other models each way5A).
(Example5A:Each channel's power is-5V=25W,12V=60W,24V=120W)
4/9Road=Single Unit Control Usage.12Road18Road=Expandable Multiple Units for Synchronized Cascade Use.
Note:When the power load of each channel exceeds, it can output ports paired with amplifiers for synchronized use,Flexible Matching and Free Editing Effects, Let the Seller Handle the Design, Programming, and Circuitry for You!
One,12Road Controller Introduction Explanation:
Shipping:Controller1Taiwan+Data Cable1Strip.

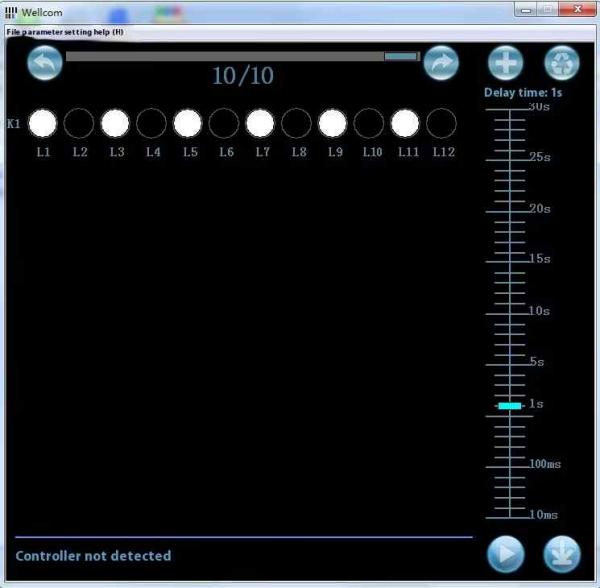

12How to Use the Road Style Software Editing Method:

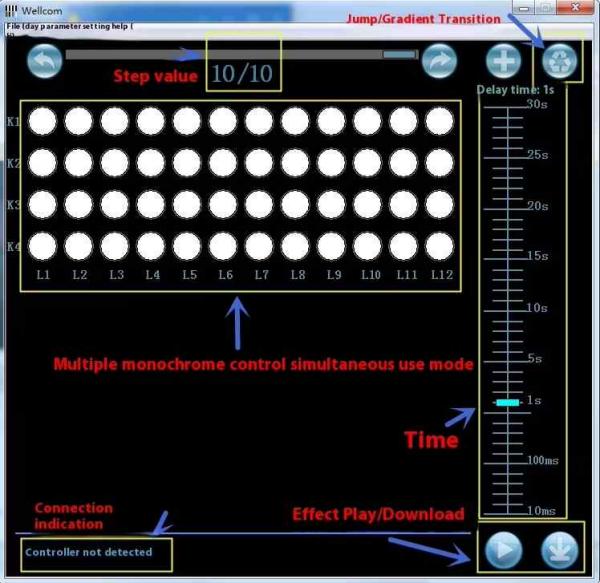

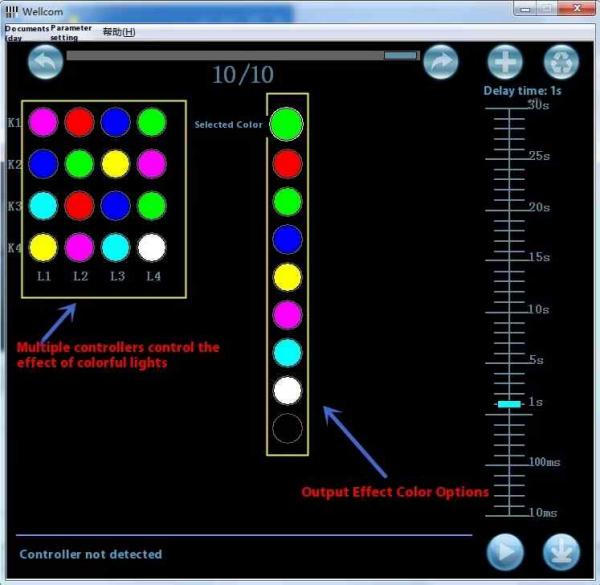

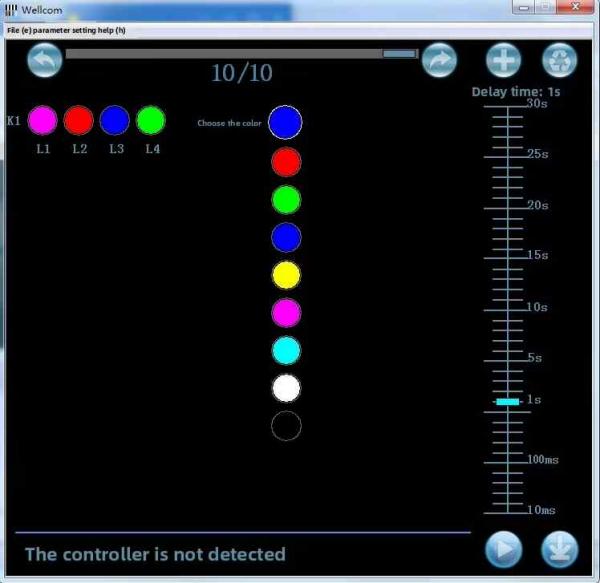

* 12The road controller connects to single-color lights12Output can be programmed,Connecting seven-color lights creates a four-way effect that can be programmed.
* Transform effect modes such as jump and fade can be freely edited,The longest single step time is30Seconds,The shortest For10Millisecond.
* Regardless12The maximum total effect step count for single or multiple units linked for simultaneous editing is355Step.
After programming the effect, connect the controller to the computer using a data cable.Just import the edited effect.
two,4/9Road Controller Operation Manual:
(4/9The road payment principle is also the same,The software version is just different)
Shipping:Controller1Taiwan.(Does not include programs for examsUDisc)

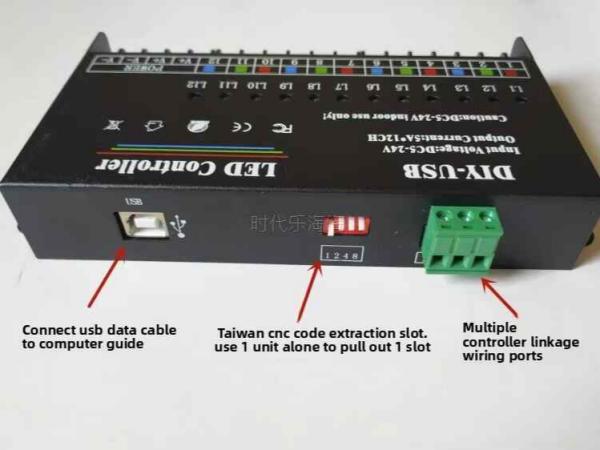

4and9Road Model Controller Software and12The operation method of the road model is quite similar.But4and9The road model is relatively simple to operate without needing a data cable or driver.Just edit the software to create the effect and save the file toUReady to Serve,When the controller is powered on, it will..UConnect the controllerUSBJust plug in and it will automatically read the effect file; import successful.
4The road model only programs the frontL1L2L3L4The program will do,
(Reading Process:After plugging in and turning on, it makes a beeping sound,Then it keeps beeping continuously2arrive3Seconds,During the process, the light will flash,Then the reading was successful,Pull OutUThe disk can be used normally now,No need for a plugUDisc.)
Attention:Failed to read successful resolution method:
1,The file name when saving the program cannot be modified; only the default name and suffix can be used.
2,UThe disk must be completely empty before adding program content files.
3,PartUThe disk may not be readable due to mismatched read speed and mode.
4,Please ensure the controller's positive and negative connections are correct.
18Product Introduction of Road Models:
Matching:Controller1Taiwan+SDHigh-speed card1Zhang
three,18Road Style Controller Introduction and Explanation:
18The editing effects of the road model controller are similar to those of the full-color model controller.Need to use software to create the effect of action mode changes first.Then use full-color software to export the effect program files,AdmittedSDJust insert the card into the controller.(Multiple Unit Linkage Sync Effects Available,Total steps can reach over 10k steps.)
Operation Instructions
1,First connect the load line,Reconnect the power cord;Ensure there are no short circuits between the connecting wires before powering on

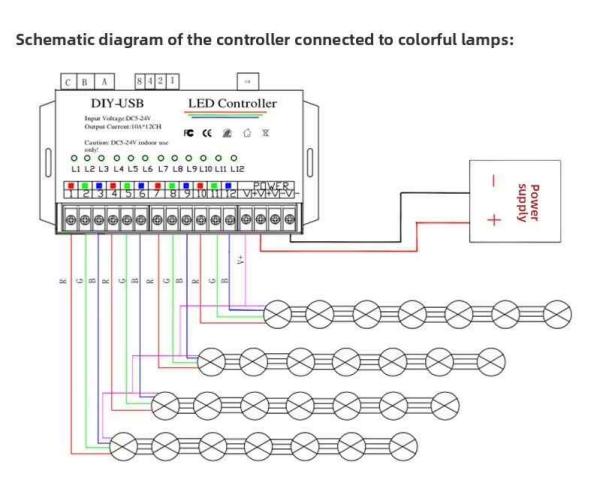

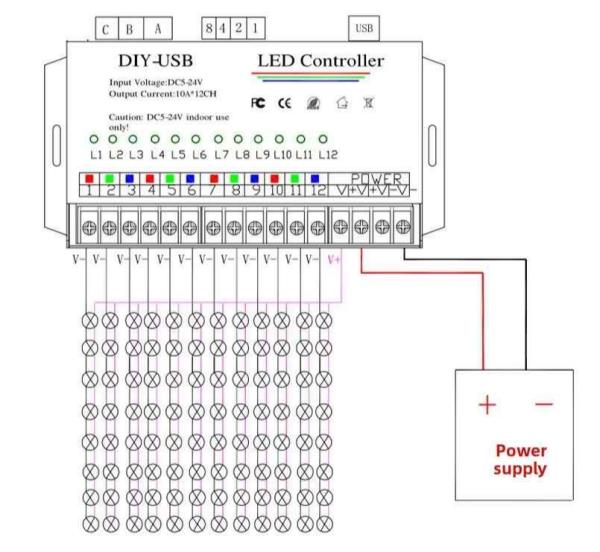

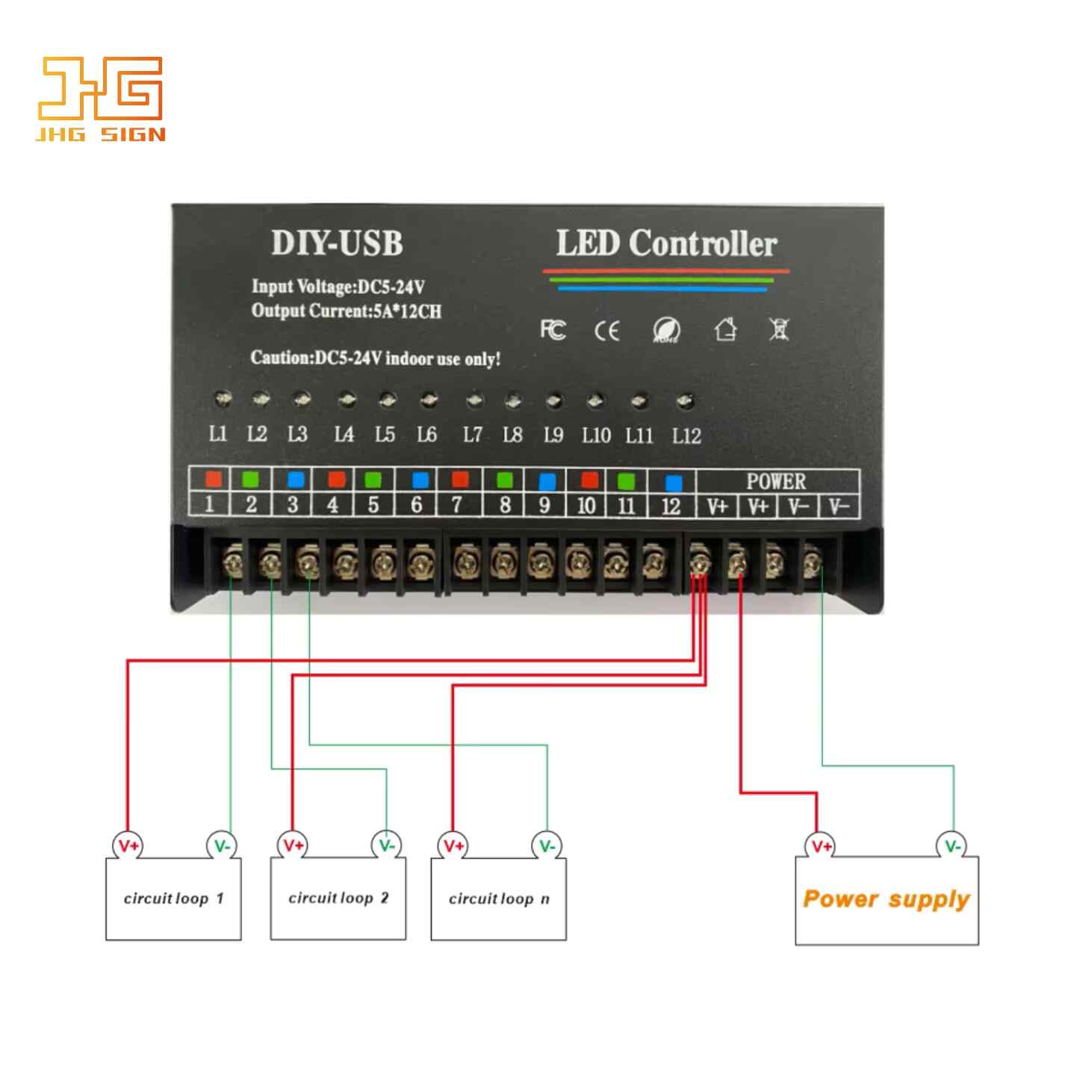

Elephant;For the thickness of the wire and wiring method, please refer to the connection diagram.
2,Press"MODE"Keys can be replaced with different effects,Each press,Change the lighting effect,See the table below for the mode changes.
(Adjustable toA01All Program Effects Rotating Playback Mode.)
3,Press"SPEED"Key Replaceable with Different Effects and Variable Speed,Press"Speed+"The key is
Speed up,Press"Speed-"Key speed slows down.
4,After operation, it can automatically remember and save the current settings.
MoreDIYController Effect Lighting Display, please consult customer service for details!There's nothing you can't think of or accomplish!
18The road model lighting software is the same as the full-color model.
Order a matching transformer power supply for use in the store!
| item | value |
| Place of Origin | China |
| Warranty(Year) | 2-Year |
| Type | MANUAL SWITCH |
| Max. Load Power | 80 |
| Connection Mode | Usb |
| Feature | Waterproof |
| Output Current | 8a |
| Remote Distance | 20.0m |
| Material | Abs |
| Output | 8 channels |
| Lighting solutions service | Lighting and circuitry design |
| Luminous Efficacy(lm/w) | 80 |
| Product Weight(kg) | 1.2 |
| Static Power Consumption | 5w |
| Brand Name | PC |
Supply Voltage:5V-24V;

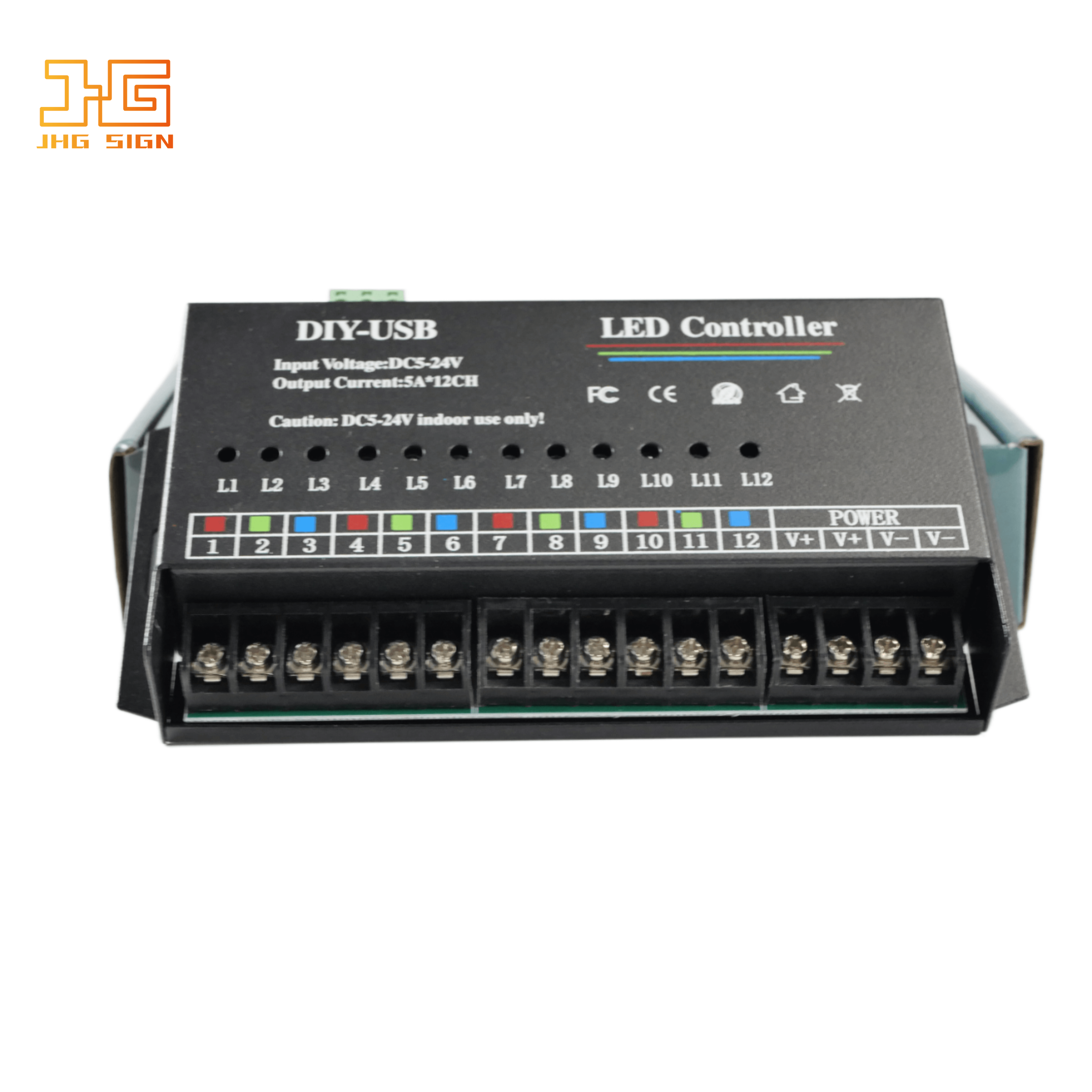

Output:12 Channels;
Connection Mode: Common Anode;
Output Current:＜5A（each channel）；
Output Power: 12V＜720W，24V＜1440W
Suzhou JHG Advertising Sign is a professional factory which devotes itself to 2nd geno led neon signs materials. Production lines include s shape led neon strips, 6/8/12mm pure silicone tubes and customized led neon signs. We hope that our clients can make led neon signs more effective and easier with our materials.
