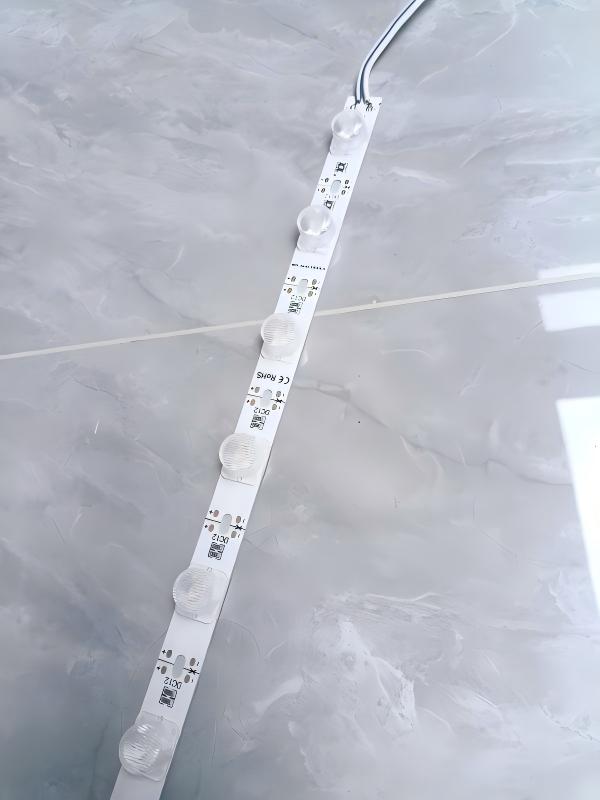

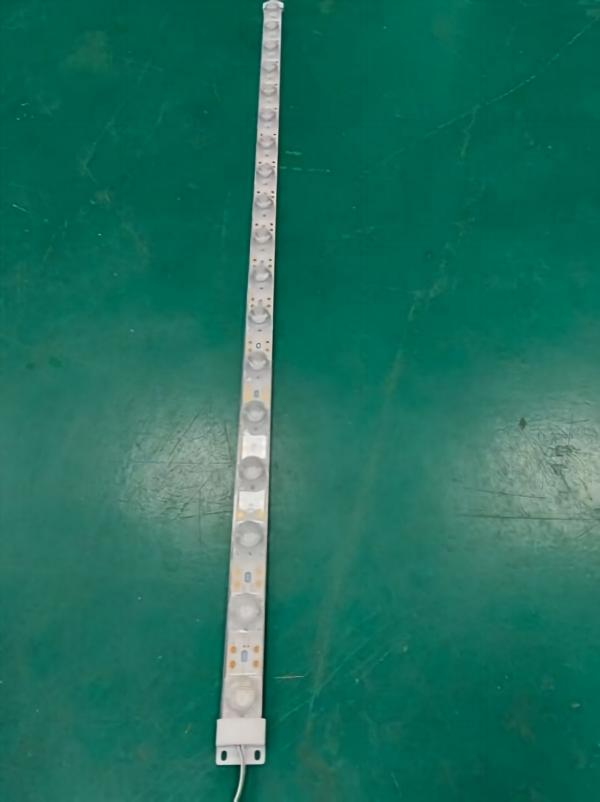

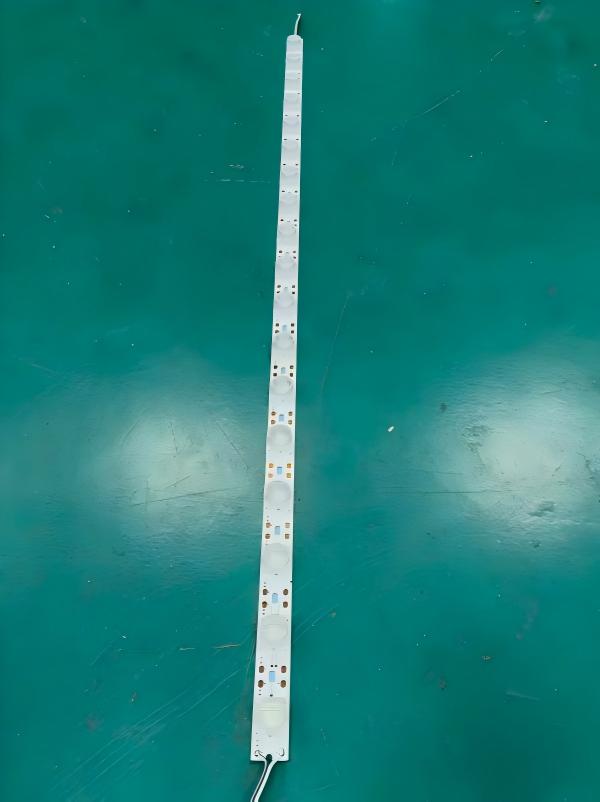

P Series 18 LED Side Emitting Module

DC12V • 18 LEDs • IP20 • Professional Side-Emitting Solution for Double-Sided Light Boxes & Wayfinding Signs

---

Hero Banner

Professional Side-Emitting LED Module for Slim Signage

Designed for double-sided light boxes, wayfinding signage, and commercial illuminated displays, the P Series 18 LED Side Emitting Module delivers precise light distribution, excellent thermal performance, and stable brightness for demanding B2B signage projects.

Perfect For

• Double-Sided Light Boxes
• Wayfinding & Directional Signs
• Airport & Metro Signage
• Shopping Mall Sign Systems
• Retail Displays
• Exhibition Light Boxes
• Commercial Advertising Signs

---

Why Choose the P Series?

Precision Side-Emitting Optical Design

The side-emitting optical structure with a 15° × 45° beam angle directs light efficiently into slim sign cabinets, improving light uniformity while minimizing hotspots.

Advantages

• Optimized side illumination
• Uniform light distribution
• Better performance in thin light boxes
• Professional lighting effect
• Reduced shadow areas

---

High-Efficiency Optical Lens

The premium PC optical lens maximizes light transmission while maintaining long-term durability.

Benefits

✔ Higher light utilization

✔ Excellent impact resistance

✔ UV-resistant material

✔ Stable optical performance

---

High Brightness 2835 LEDs

Delivering approximately 140 lumens per LED, the module provides bright and efficient illumination suitable for commercial signage.

Lighting Performance

• High luminous efficiency
• Stable color consistency
• Low heat generation
• Long operating life

---

Product Features

One LED, One Cut

Each LED can be cut individually, allowing maximum flexibility when designing and assembling custom signage.

Benefits

• Precise installation
• Less material waste
• Easier maintenance
• Faster production

---

Dual-End Wiring Design

The strip features wiring at both ends for quick installation and easy series connection.

Advantages

✔ Faster installation

✔ Flexible wiring

✔ Supports serial connection

✔ Simplifies project assembly

---

1mm Aluminum PCB

The thick 1.0 mm aluminum PCB offers excellent heat dissipation, improving product stability and extending service life.

Thermal Benefits

• Better heat transfer
• Stable brightness
• Longer lifespan
• Improved reliability

---

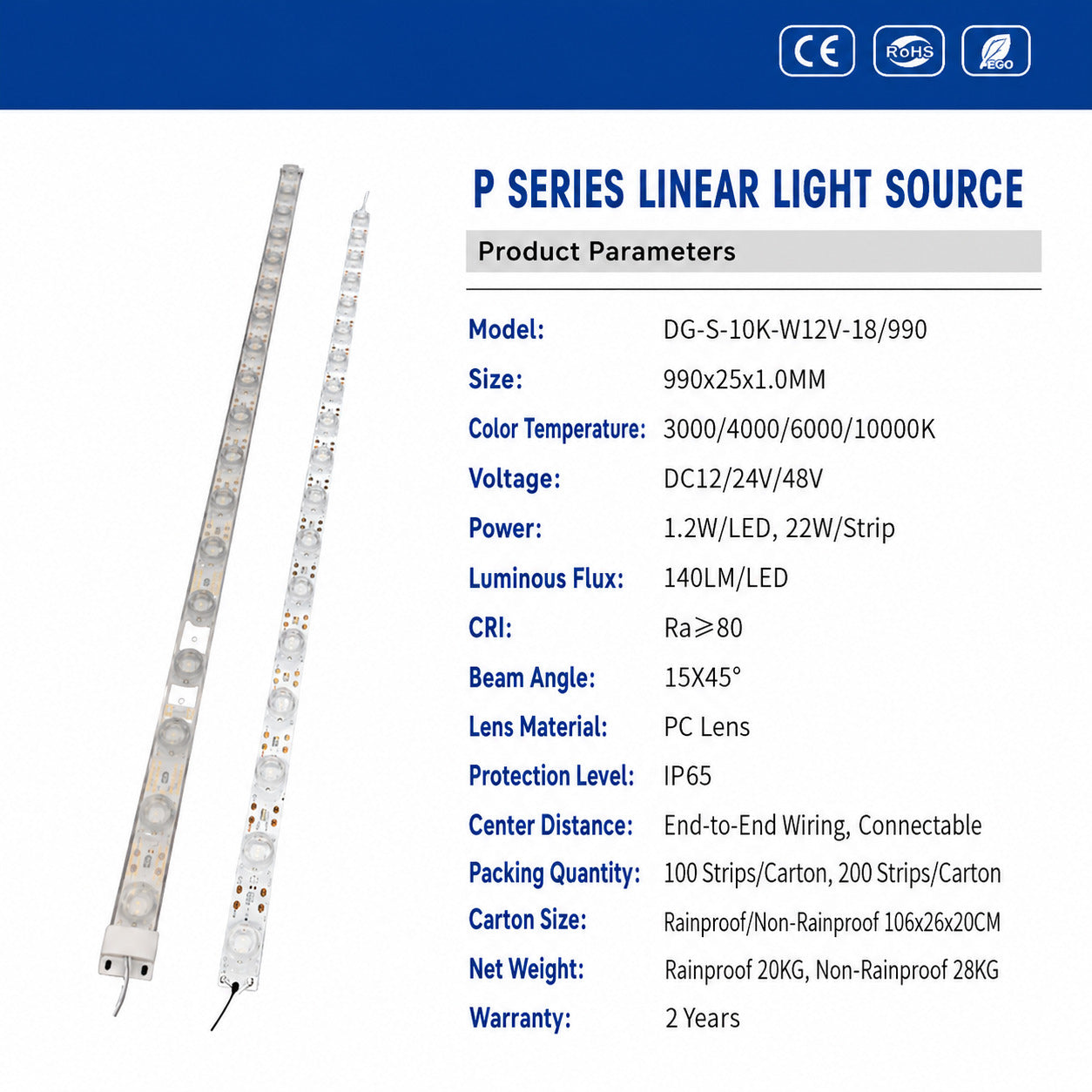

Technical Specifications

Item	Specification
Product Series	P Series
Product Name	P Series 18 LED Side Emitting Module
LED Quantity	18 LEDs
LED Type	SMD 2835
Light Direction	Side Emitting
Voltage	DC12V
Waterproof Rating	IP20
Beam Angle	15° × 45°
Lens Material	PC Optical Lens
Color Temperature	13000K
Color Rendering Index	Ra ≥ 80
Brightness	140 lm / LED
PCB Thickness	1.0 mm Aluminum PCB
Power	1.2W / LED • 22W / Strip
Product Size	990 × 25 × 1 mm
Wiring	Dual-End Wiring, Series Connection
Polarity	Blue (+), White (-)
Warranty	2 Years
Certifications	CE, RoHS

---

Key Advantages

Professional Optical Performance

Specialized side-emitting design for thin illuminated signs.

Excellent Heat Dissipation

1 mm aluminum PCB improves thermal conductivity and product lifespan.

Flexible Installation

One LED per cut and dual-end wiring simplify installation for custom projects.

Reliable Quality

Manufactured under strict quality control with CE and RoHS compliance.

---

Recommended Applications

Double-Sided Light Boxes

Uniform illumination for advertising and promotional displays.

Wayfinding Systems

Ideal for airports, hospitals, shopping malls, office buildings, and transportation hubs.

Commercial Signage

Suitable for retail stores, supermarkets, restaurants, and corporate branding.

Exhibition Displays

Provides clean and consistent lighting for trade show booths and display systems.

---

Product Advantages for Sign Manufacturers

Feature	Customer Benefit
Side-Emitting Design	Better illumination in slim signs
15° × 45° Beam Angle	More efficient light distribution
One LED Per Cut	Greater design flexibility
Dual-End Wiring	Faster installation
1 mm Aluminum PCB	Superior heat dissipation
CE & RoHS Certified	Meets international market requirements
2-Year Warranty	Lower maintenance costs

---

OEM & ODM Services

We provide comprehensive customization services:

• OEM Manufacturing
• Private Label Branding
• Custom Wire Length
• Custom Color Temperature
• Custom Packaging
• Bulk Wholesale Programs
• Project-Based Production
• Technical Support

---

Packaging Information

Item	Specification
Packaging	1 Strip / String
Quantity per Carton	200 Strips
Carton Size	106 × 26 × 20 cm
Gross Weight	28 kg

---

Quality Assurance

Every module undergoes:

• 100% Functional Testing
• Brightness Consistency Inspection
• Electrical Safety Testing
• Aging Test Before Shipment
• Final Quality Inspection

---

Frequently Asked Questions

Q1: What applications is this module designed for?

It is specifically designed for double-sided light boxes, wayfinding systems, and slim commercial signage.

Q2: Can the module be cut?

Yes. The one-LED-per-cut design allows flexible customization for different sign sizes.

Q3: What material is used for the lens?

A high-transmittance PC optical lens is used to maximize light efficiency and durability.

Q4: Does it support series connection?

Yes. The dual-end wiring design allows convenient series connection for large installations.

Q5: Is OEM service available?

Yes. We offer OEM/ODM manufacturing, customized packaging, branding, and technical support for distributors and sign manufacturers.

---

Request a Wholesale Quote

Factory-Direct LED Module Manufacturer

Whether you are a sign manufacturer, lighting distributor, advertising contractor, or OEM brand, the P Series 18 LED Side Emitting Module provides a reliable, energy-efficient, and professional lighting solution for modern illuminated signage.

Why Partner with JHG?

✔ Factory Direct Pricing

✔ Stable Product Quality

✔ Fast Production & Delivery

✔ CE & RoHS Certified

✔ OEM & ODM Services

✔ Global Wholesale Support

Contact us today for samples, technical datasheets, and distributor pricing.
