Description

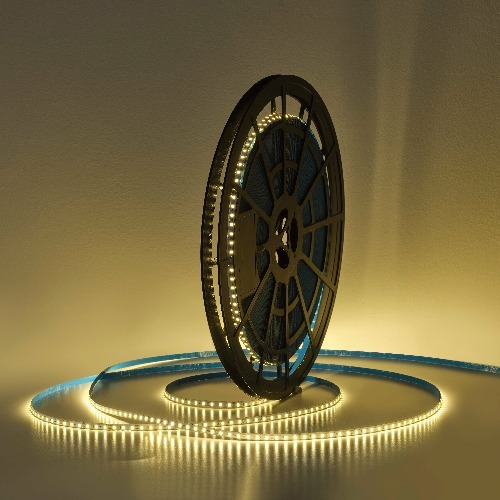

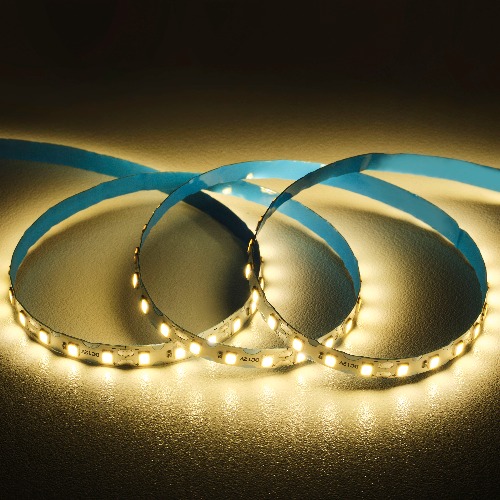

120LEDs S Shape LED Strip Light for Neon sign
3 LEDs Per Cut • 50M Per Roll • Flexible S-Type PCB
HERO BANNER
Flexible S-Type LED Strip for Neon Sign & Curved Lighting Applications
Dot-Free Lighting | Ultra Flexible | High Brightness | Factory Wholesale
- Voltage: DC/DC12V
- 120 LEDs/m
- 25mm Cutting Distance
- 50M Per Roll
- IP20 Non-Waterproof/IP65 Rainproof
- OEM & ODM Support
Suitable For:
Signage • Indoor Neon • Decorative Lighting • Advertising Projects • DIY Lighting
PRODUCT FEATURES

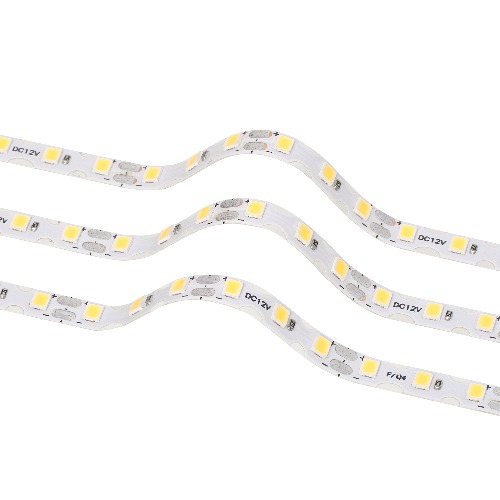

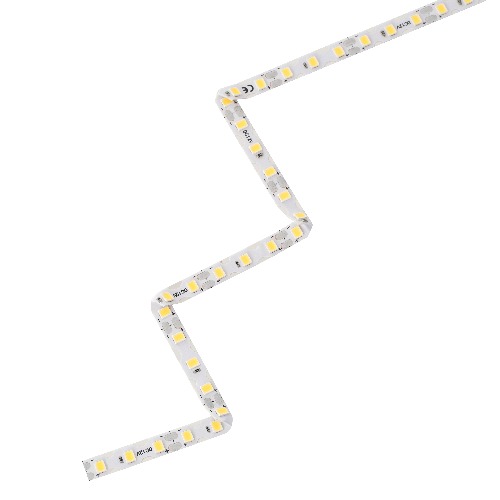

Ultra Flexible S-Type PCB
The unique S-shape PCB design allows horizontal bending and curved installation, making it ideal for channel letters, signage, and irregular lighting projects.
Advantages:
- Easy bending for curved surfaces
- Stable conductivity
- Flexible installation
- Suitable for narrow spaces
High Brightness 2835 LEDs
Equipped with premium SMD2835 LEDs for stable brightness and energy-efficient performance.
Features:
- Uniform lighting output
- Low light decay
- Energy saving
- Long lifespan

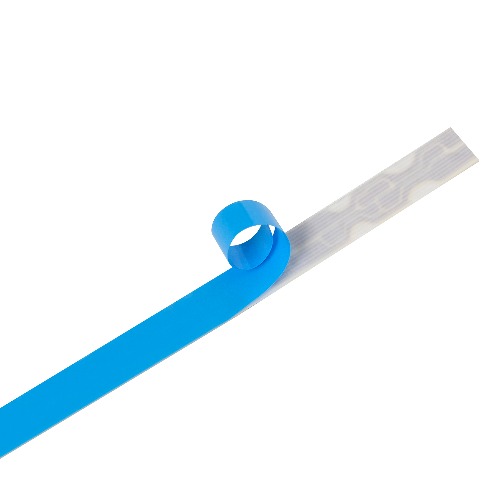

Strong Adhesive Backing
High-quality adhesive backing ensures easy installation on various surfaces.
Installation Benefits:
- Fast installation
- Strong adhesion
- Clean appearance
- Suitable for indoor applications
PRODUCT APPLICATIONS
Perfect for Various Lighting Projects
- Indoor Neon Signs
- Advertising Light Boxes
- Decorative Lighting
- Cabinet Lighting
- Commercial Lighting
- DIY Projects
- Retail Store Decoration
- Curved Architectural Lighting
TECHNICAL SPECIFICATIONS
|
Item |
Specification |
|
Product Name |
S Shape LED Strip Light |
|
LED Quantity |
120 LEDs/m |
|
LED Type |
SMD2835 |
|
Voltage |
DC5V/DC12V |
|
Power |
7.2W/m |
|
PCB Width |
6.5MM |
|
Cutting Unit |
3 LEDs Per Cut |
|
Cutting Distance |
25mm |
|
Beam Angle |
120° |
|
Waterproof Rating |
IP20 Non-Waterproof/IP65 Rainproof |
|
CRI |
70Ra |
|
Luminous Flux |
960~1200lm/m |
|
Working Temperature |
-20°C ~ +60°C |
|
Lifespan |
50,000 Hours |
|
Roll Length |
50M/Roll |
|
MOQ |
50M |
|
Warranty |
3 Years |
AVAILABLE COLORS
Multiple Color Options Available
- Warm White 3200K
- Natural White 4500K
- Pure White 6500K
- Cool White 10000K
- Red
- Yellow
- Blue
- Green
- Purple
- Hot Pink
- Lemon Yellow
- Ice Blue
- Orange
OEM customized colors available.
CUTTING & INSTALLATION

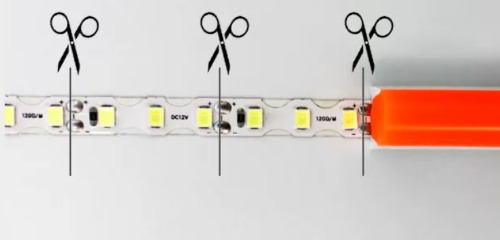

Easy Cutting Design
The strip can be cut every 25mm along the marked cutting points.
Installation Steps:
- Clean the installation surface
- Measure required length
- Cut along cutting marks
- Connect DC5V/DC12V power supply
- Fix the strip in position
- Test before final installation
PRODUCT ADVANTAGES
Why Choose Our S Shape LED Strip?
Factory Direct Supply
Competitive factory pricing with stable quality.
OEM & ODM Support
Custom packaging, logo printing, and specifications available.
Stable Quality Control
Strict QC process for every production batch.
Fast Production
Professional production line with fast delivery support.
Export Experience
Experienced in worldwide wholesale and project orders.
PACKAGING INFORMATION
|
Item |
Details |
|
Roll Length |
50M |
|

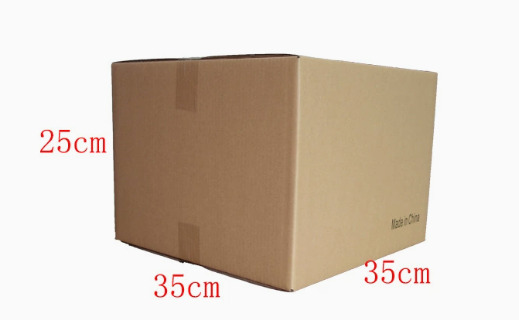

Carton Size |
35 × 35 × 25 CM |
|
Quantity Per Carton |
1200M |
|
Packaging |
Anti-static packaging |
OEM & CUSTOMIZATION SERVICE
We Support Customization
- Custom Voltage
- Custom PCB Width
- Custom Packaging
- Private Label Service
- Logo Printing
- Waterproof Customization
- Color Temperature Customization
FAQ
Q1: Can the strip be cut?
Yes. The strip can be cut every 25mm.
Q2: Is this strip waterproof?
This version is IP20 non-waterproof. IP65 rainproof version is also available.
Q3: What applications is it suitable for?
It is suitable for indoor neon signs, decorative lighting, advertising signs, and curved lighting projects.
Q4: Do you support OEM orders?
Yes. OEM and ODM services are available.
Q5: What power supply should be used?
Please use a stable DC 5V/DC12V LED power supply.
