Description

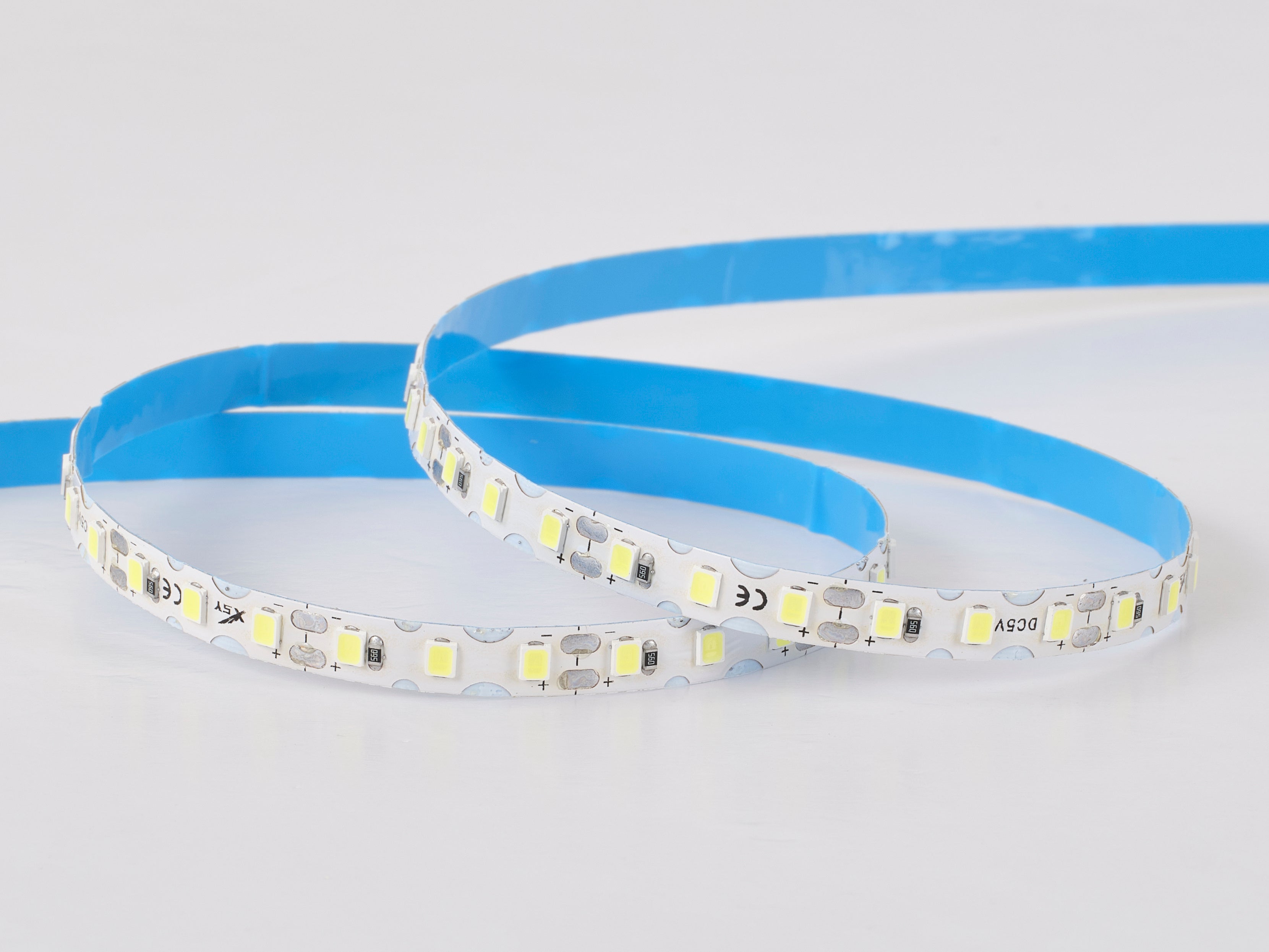

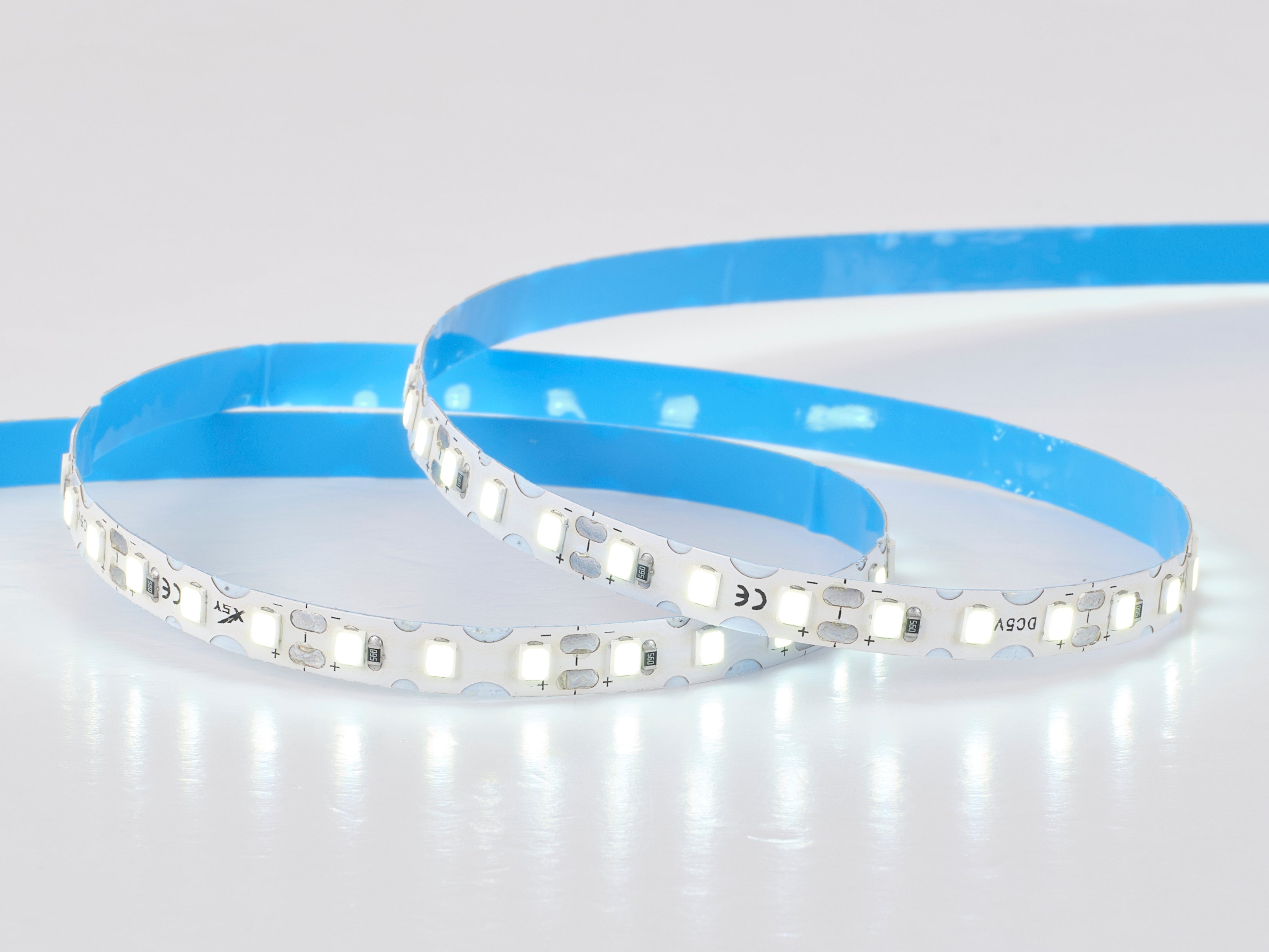

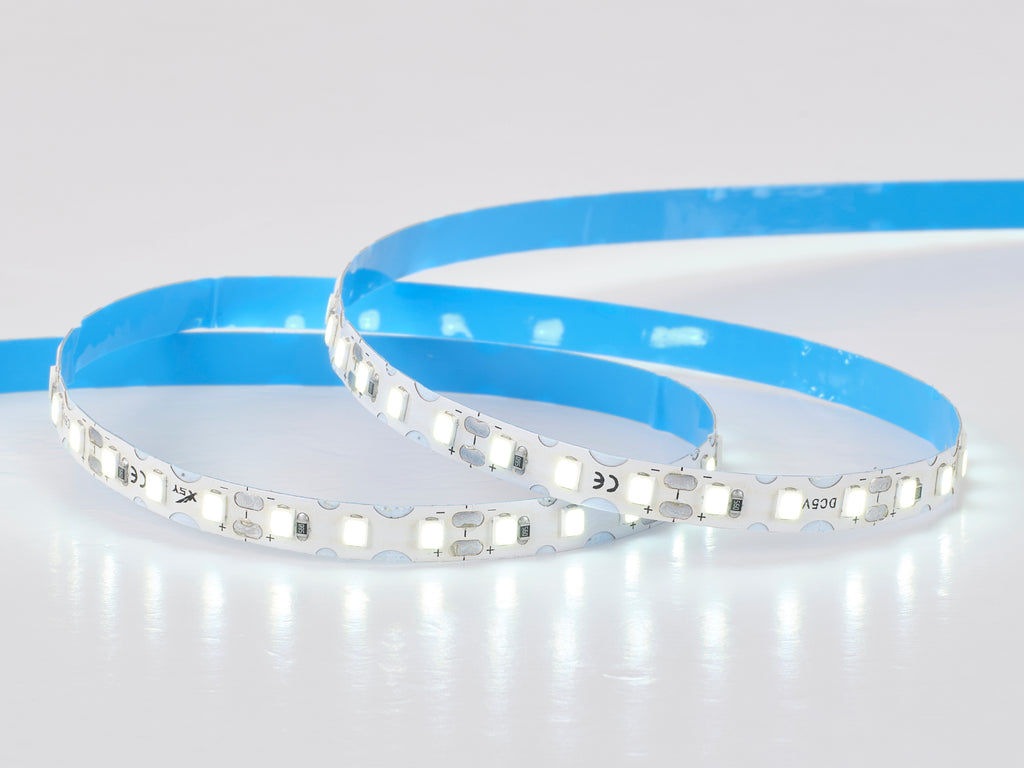

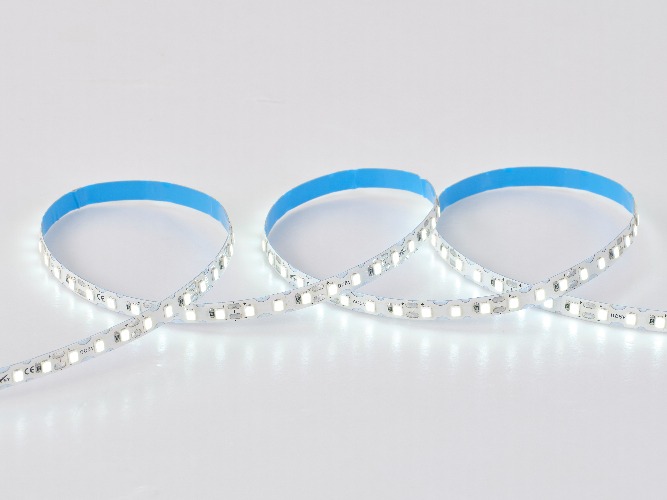

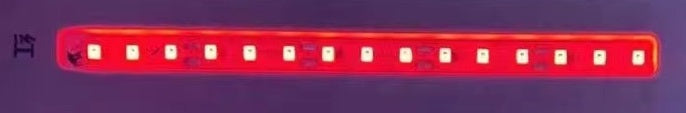

5V S Shape LED Strip Light
120 LEDs/m • 3 LEDs Per Cut • 50M Per Roll
Specially Designed for Split Neon Flex Sign Manufacturing
Hero Banner
Flexible Lighting Solution for Creative Neon Signs
DC5V Low Voltage | 120 LEDs/m | 25mm Cutting Length | Factory Direct Supply
✔ Ultra Flexible S-Type PCB
✔ High Density 120 LEDs/m
✔ 3 LEDs Per Cut
✔ Stable 5V Constant Voltage
✔ 50M Long Roll Packaging
✔ 13 Color Options Available
✔ OEM & ODM Supported
Designed for Split Neon Flex Applications

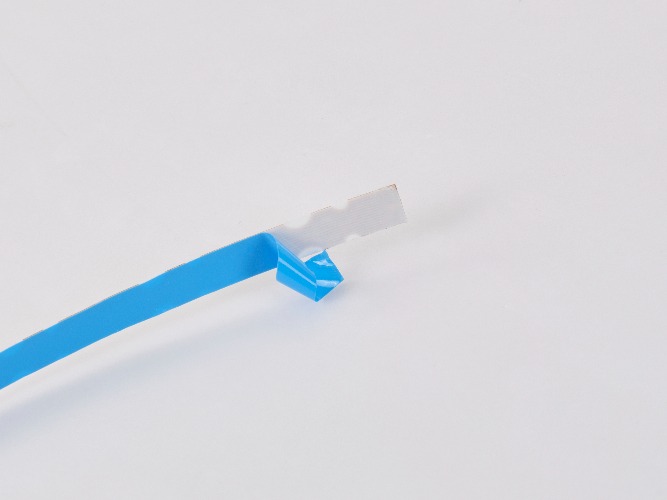

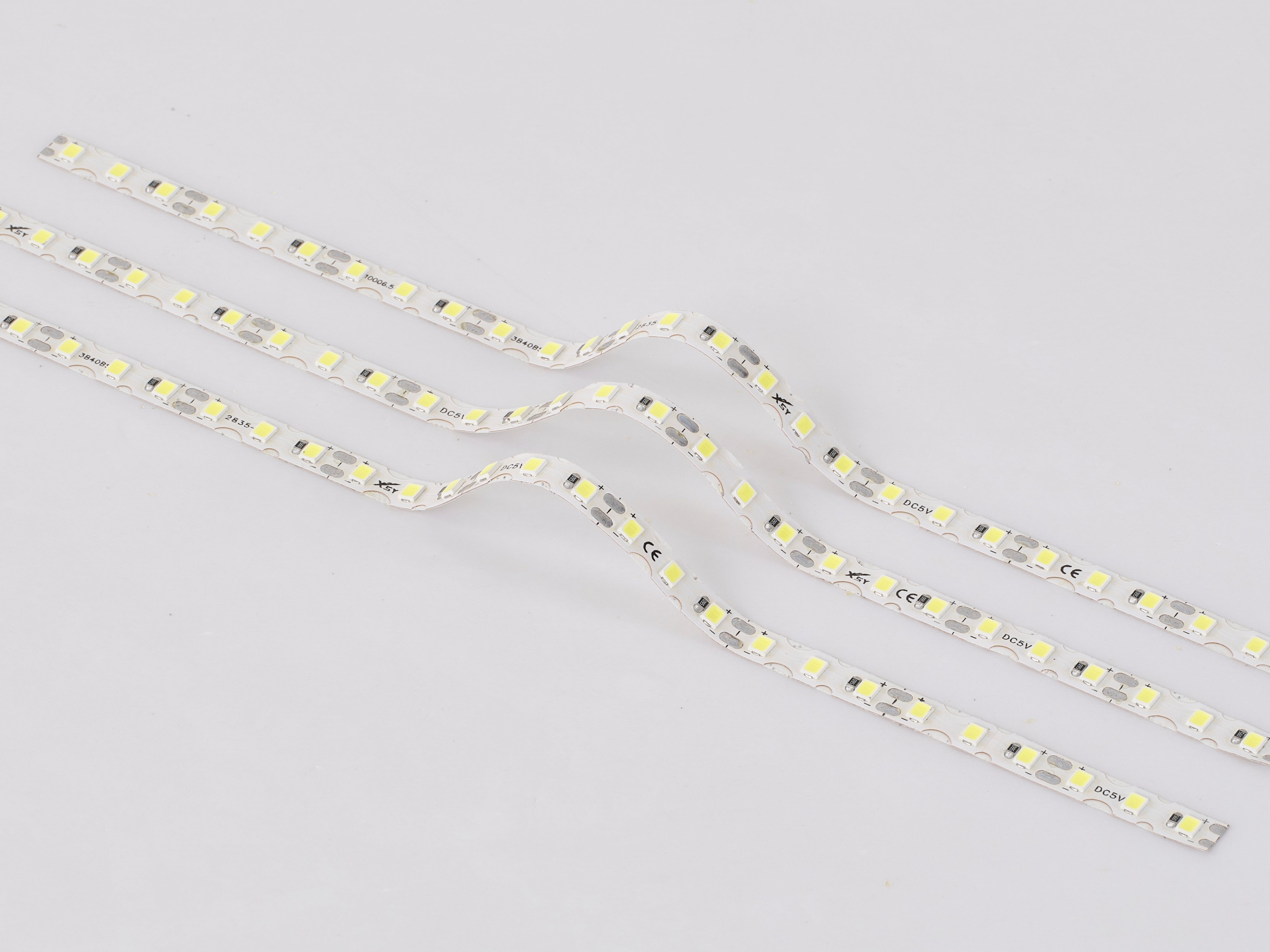

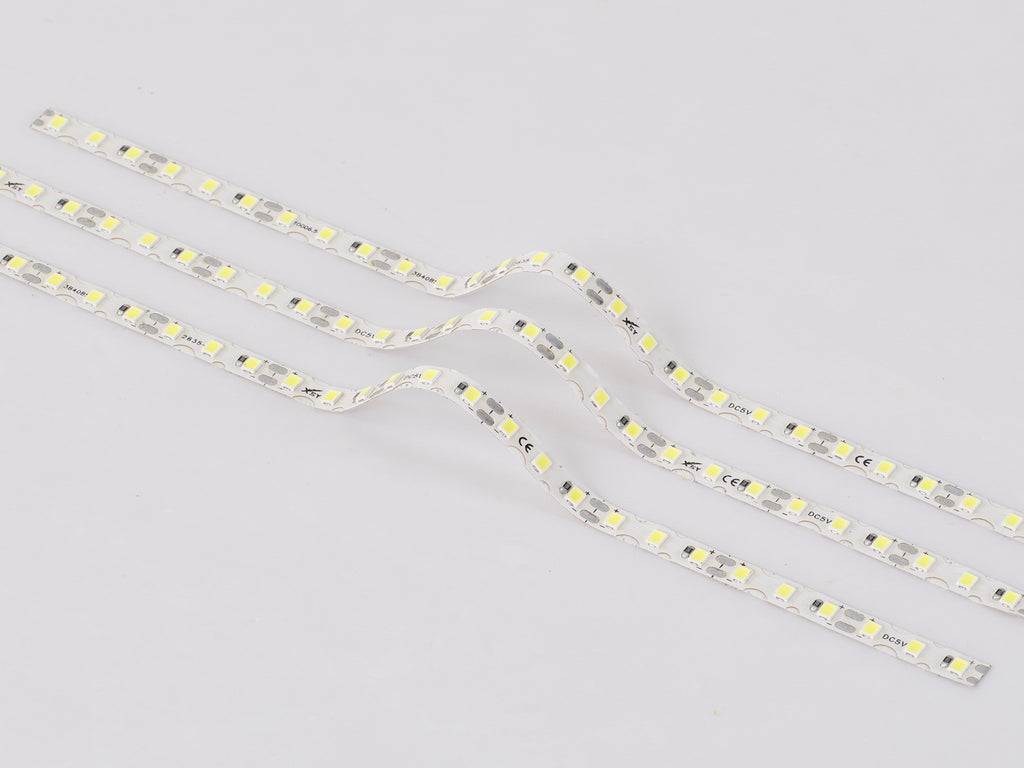

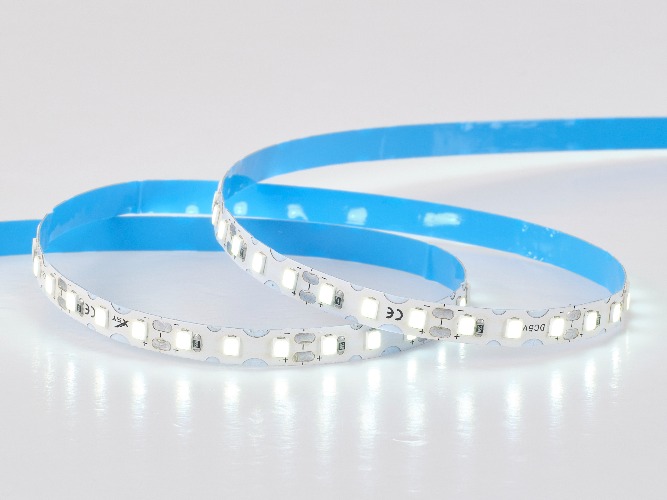

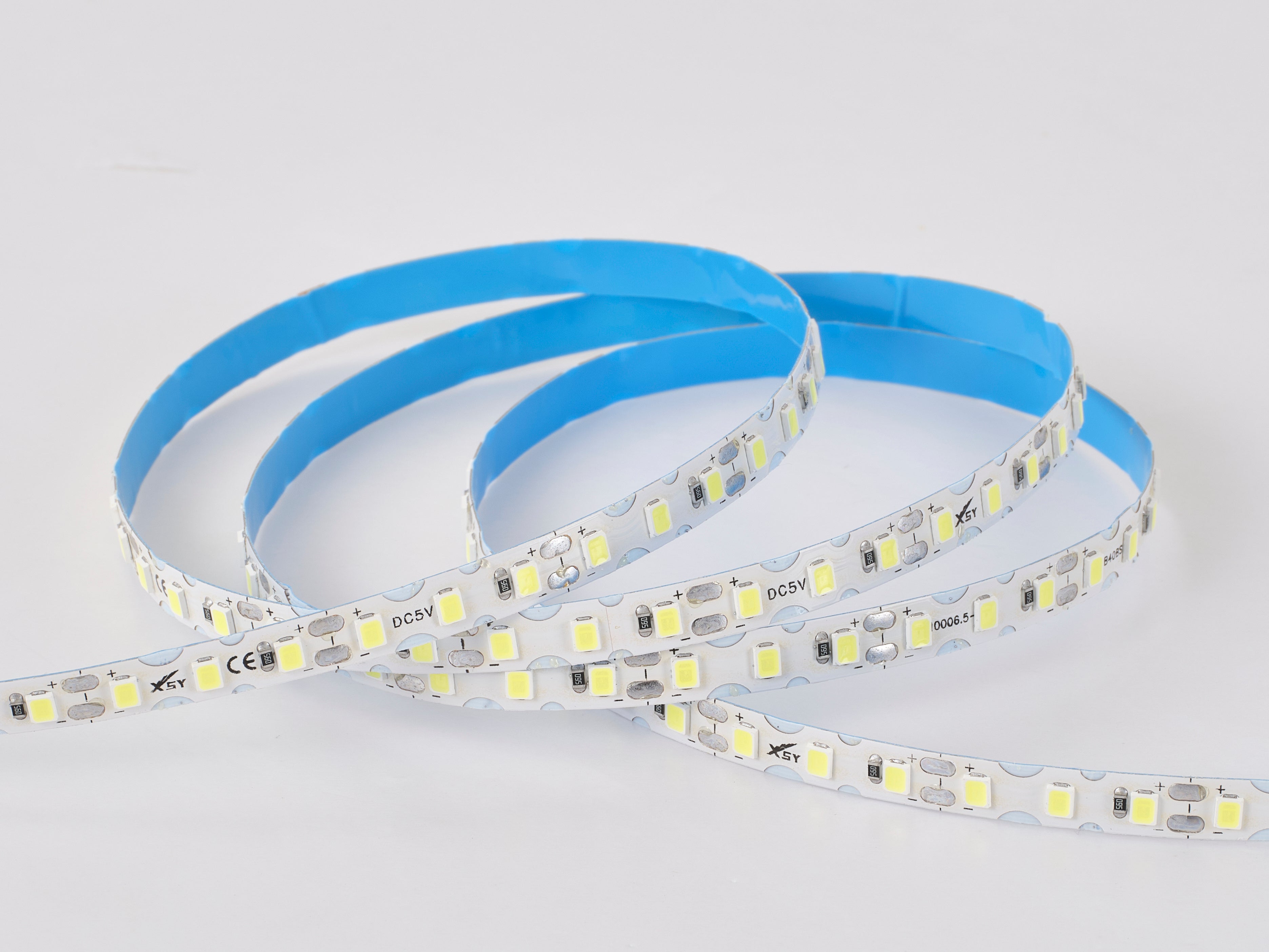

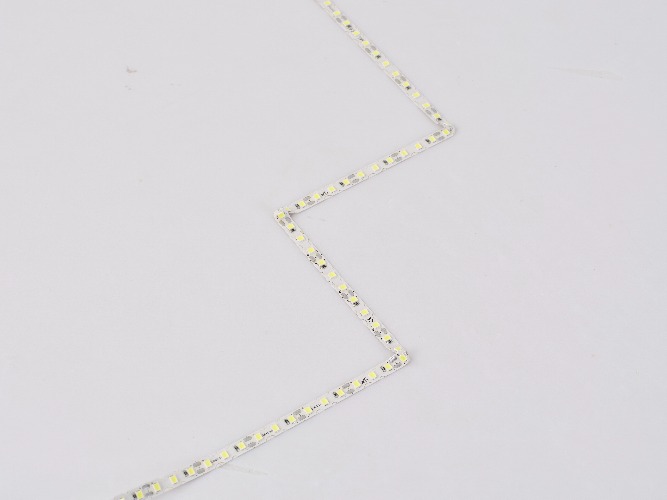

Flexible S-Type PCB Structure
The specially engineered S-shape flexible PCB is designed for complex curves, letters, logos, and custom neon sign production.
Advantages
- Easier horizontal bending
- Suitable for complex shapes
- Less risk of PCB cracking
- Faster installation process
- Ideal for handmade neon signs

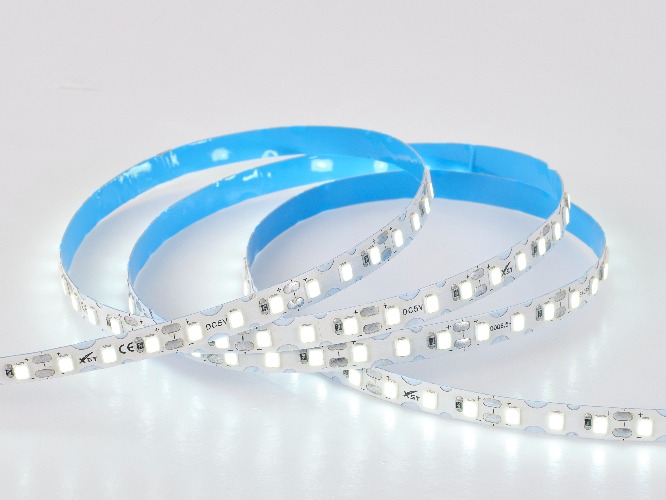

High Density 120 LEDs Per Meter
Equipped with premium SMD2835 LEDs, providing smoother and more uniform lighting output.
Benefits
✓ Reduced light spots
✓ Better visual appearance
✓ Improved sign illumination
✓ Energy-efficient performance
Product Features
Feature 01 – Ultra Flexible PCB
Flexible circuit board design allows easy shaping for customized neon sign projects.
Feature 02 – Uniform Lighting Output
High-density LED arrangement provides smooth and even illumination.
Feature 03 – Multiple Color Choices
13 popular colors available for commercial and decorative projects.
Feature 04 – Proven Market Performance
This product has been continuously supplied for more than 8 years with stable quality and performance.
Technical Specifications
|
Item |
Specification |
|
Product Name |
5V 120LED S Shape LED Strip |
|
Product Type |
Split Neon Flex Dedicated Strip |
|
LED Type |
SMD2835 |
|
LED Quantity |
120 LEDs/m |
|
Voltage |
DC5V |
|
Power Consumption |
7.2W/m |
|
PCB Width |
6.5mm |
|
Cutting Unit |
3 LEDs Per Cut |
|
Cutting Distance |
25mm |
|
Beam Angle |
120° |
|
Resistor Type |
External Resistor |
|
CRI |
Ra70 |
|
Luminous Flux |
960–1200 lm/m |
|
Waterproof Rating |
IP20 Non-Waterproof |
|
Operating Temperature |
-20°C ~ +60°C |
|
Lifespan |
50,000 Hours |
|
Warranty |
3 Years |
|
Power Injection |
Every 2 Meters |
|

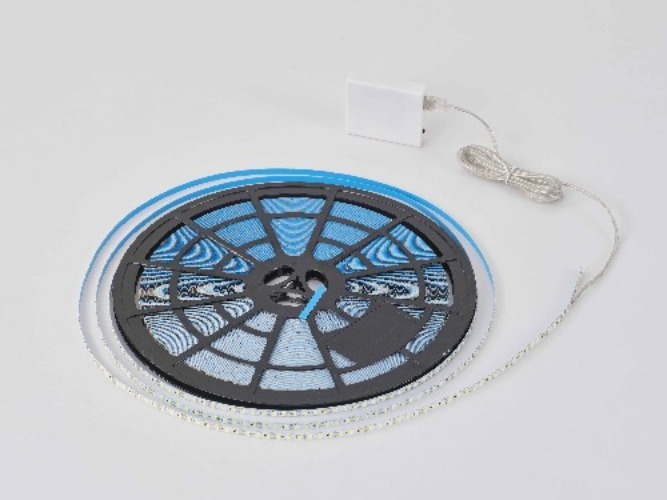

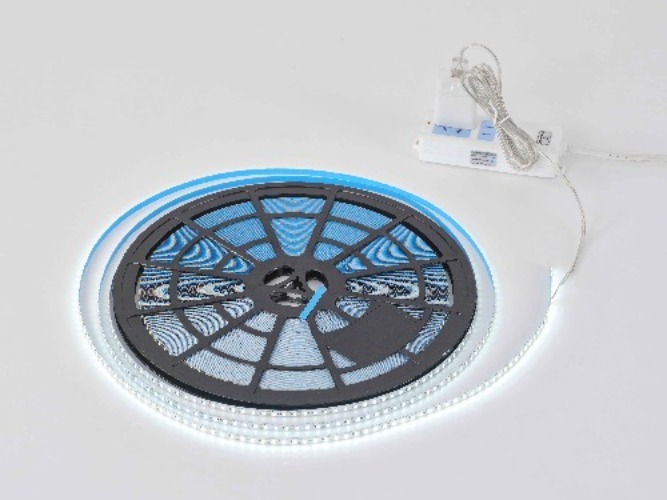

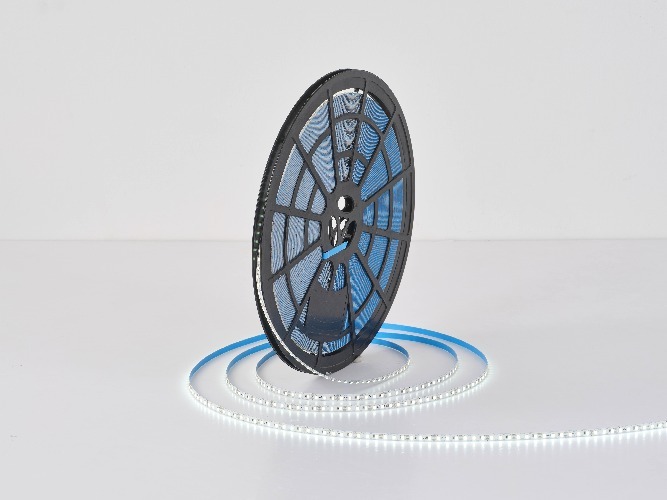

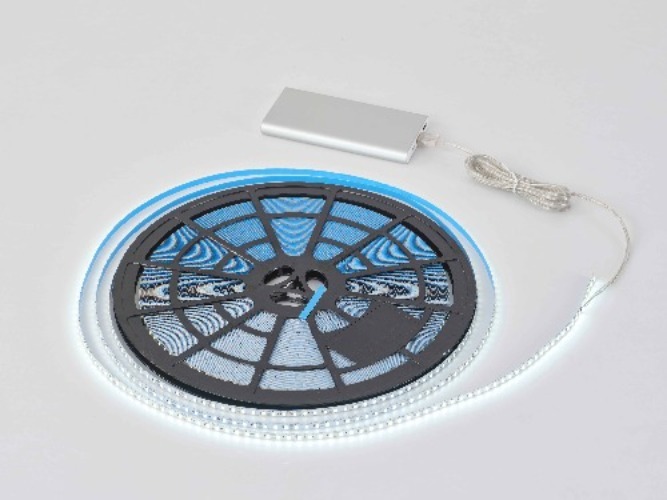

Roll Length |
50M/Roll |
|
MOQ |
50M |
Available Colors
Standard Color Options

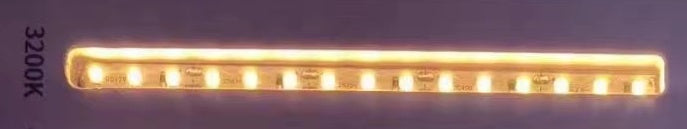

- Warm White 3200K

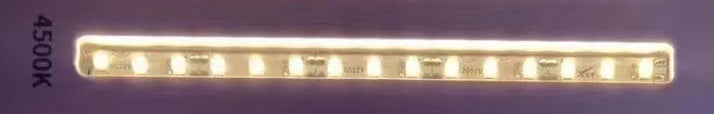

- Natural White 4500K
- Pure White 6500K
- Cool White 10000K

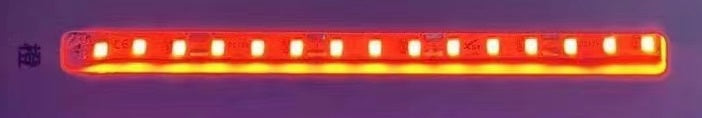

- Red
- Yellow

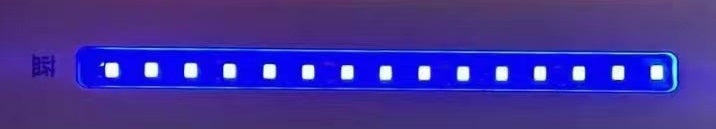

- Blue

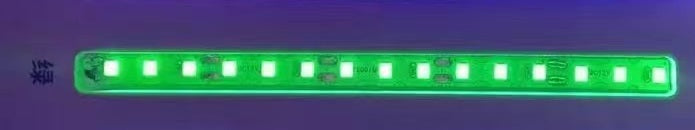

- Green

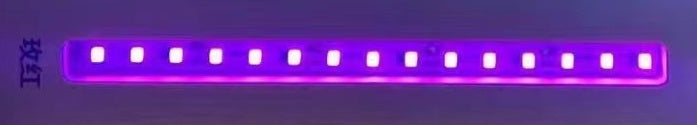

- Purple

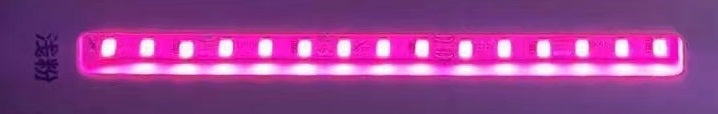

- Hot Pink

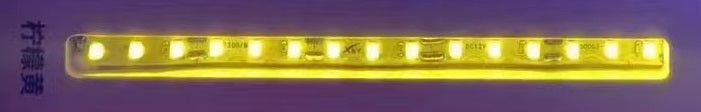

- Lemon Yellow

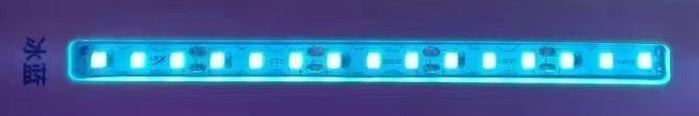

- Ice Blue

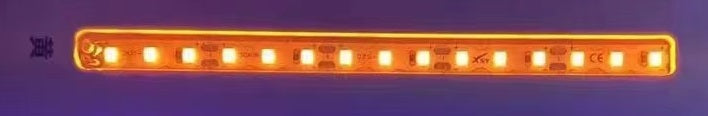

- Orange
Custom colors available upon request.
Recommended Supporting Materials
Split Silicone Neon Tubes
Compatible with:
- 6mm Split Silicone Tube
- 8mm Split Silicone Tube
- 12mm Split Silicone Tube
Perfect for creating customized neon signage.

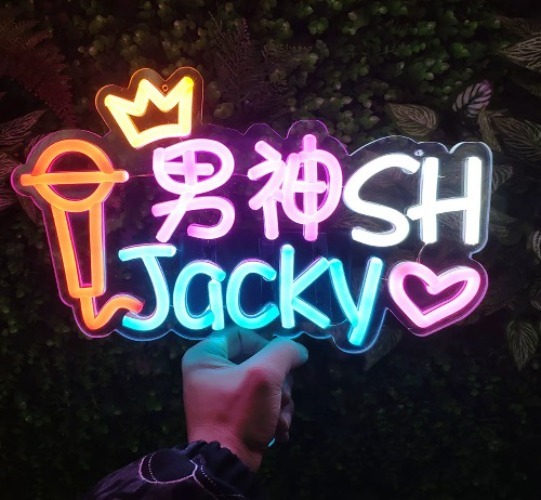

Application Scenarios
Widely Used For
- Small Handheld Neon Signs
- Advertising Signage
- Retail Displays
- Event Decorations
- Commercial Projects
- Home Decoration
- Exhibition Displays
- Customized Neon Artwork
Certifications
Certified according to international market requirements:
- CE
- RoHS
Suitable for export and global wholesale markets.
Installation Guide
Quick Installation Steps
Step 1
Measure the required length.
Step 2
Cut along the 25mm cutting marks.
Step 3
Connect to a DC5V power supply.
Step 4
Insert into the split silicone tube.
Step 5
Seal and complete installation.
Step 6
Test before final delivery.
OEM & Customization Services
We Support:
✔ Customized Colors
✔ Customized Roll Length
✔ Customized Packaging
✔ Carton Customization
✔ Anti-Static Bag Customization
✔ Private Label Service
✔ Logo Printing
✔ Special Project Development
✔ Complex OEM & ODM Requirements
Packaging Information
|
Item |
Details |
|
Roll Length |
50M |
|
MOQ |
50M/Roll |
|
Carton Size |
35 × 35 × 25 cm |
|
Carton Capacity |
1100M |
|
Packaging |
Anti-Static Packaging |
Why Choose Our Factory?
Factory Direct Supply
Competitive wholesale pricing.
Stable Production
Over 8 years of continuous market validation.
Reliable Quality
Strict production and quality control procedures.
Fast Delivery
Efficient manufacturing and export experience.
OEM Expertise
Professional support for neon sign manufacturers and distributors.
Frequently Asked Questions
Q1: Can the strip be cut?
Yes. It can be cut every 3 LEDs (25mm).
Q2: Is this strip waterproof?
This version is IP20 non-waterproof.
Q3: What voltage should be used?
A stable DC5V constant voltage power supply is required.
Q4: What products is it suitable for?
It is specifically designed for split silicone neon flex and small handheld neon sign manufacturing.
Q5: Do you support OEM and ODM orders?
Yes. We support custom colors, packaging, lengths, branding, and special project requirements.
