Description
Short Description

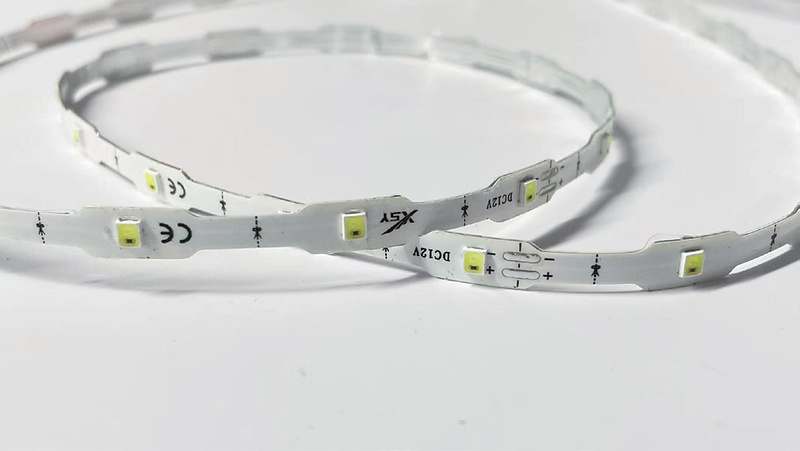

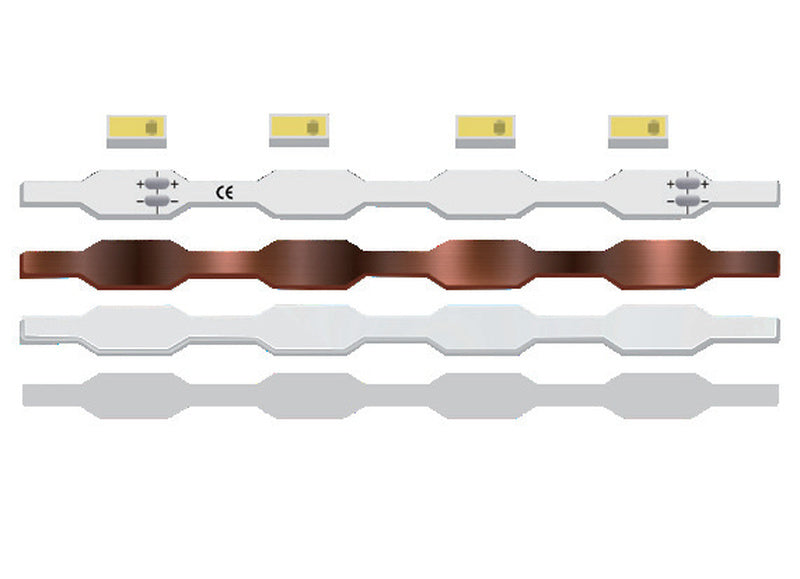

Purpose-built S-type LED strip for stainless steel, edgeless and flat-faced channel letters. 36 LEDs per metre on a slim 6.4mm PCB with true single-LED cutting — every single LED is a cut point, so you build any length with no waste and no dark spots. Built-in resistors, an extra-long 8m power feed and IP65 rainproof protection keep installation simple and maintenance-free.
Specifications
|
Parameter |
Value |
|
Voltage |
DC 24V |
|
LED Type |
SMD 2835 |
|
LED Density |
36 LEDs/m |
|
PCB Width |
6.4mm (slim) |
|
Cutting Unit |
Single LED (1 LED per cut) |
|
Cut Length |
Every 27.78mm |
|
Power Consumption |
12W/m |
|
Beam Angle |
120° |
|
Waterproof Rating |
IP65 (rainproof) |
|
Colour Temperature |
12000K cool white |
|
Max Power Feed |
8m |
|
Resistor |
Built-in integrated resistor |
|
Lifespan |
50,000 hours |
|
Warranty |
3 years |
|
Roll Length |
100m/roll |
|
Carton |
40 × 26 × 41cm — 2,000m per carton |
Key Features
- Maintenance-free single-LED cutting — every LED is a cut point, no wasted strip
- Built-in resistors lower the failure rate
- Extra-long 8m power feed reduces wiring runs
- Low installation requirements — no special tools or skills needed
- Even 120° light output with no dark spots after bending
Applications
- Stainless steel letters
- Edgeless letters

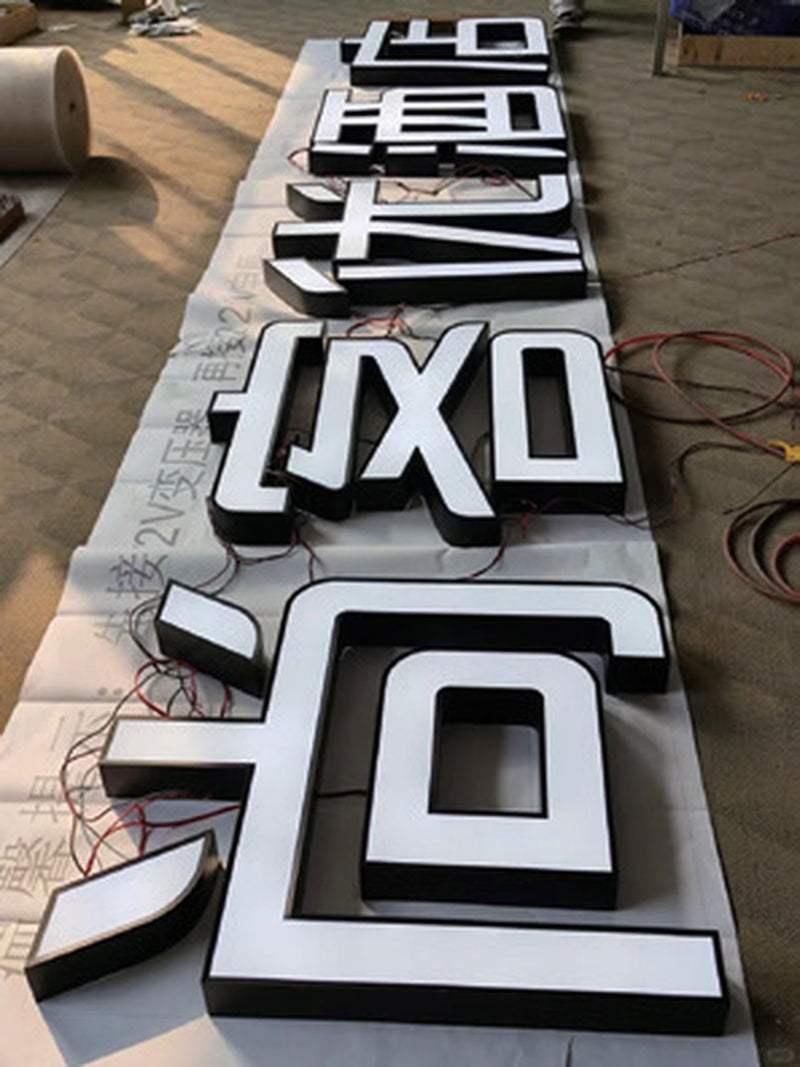

- Flat-faced channel letters
- Signage backlighting
Packaging, MOQ & Wholesale
- Packaging: 100m per roll
- Carton: 40 × 26 × 41cm, 2,000m per carton
- MOQ: 100m/roll
- Wholesale & OEM orders welcome
