Description
Short Description

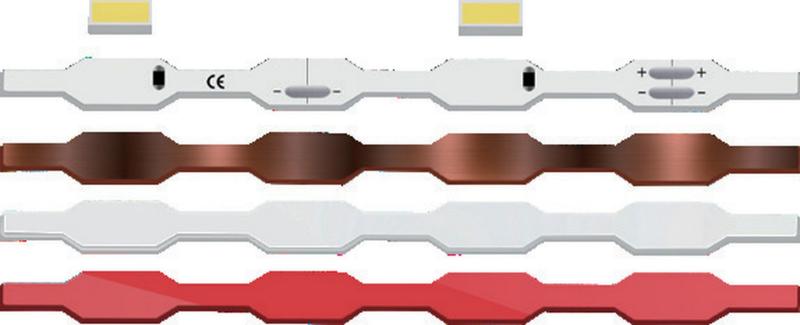

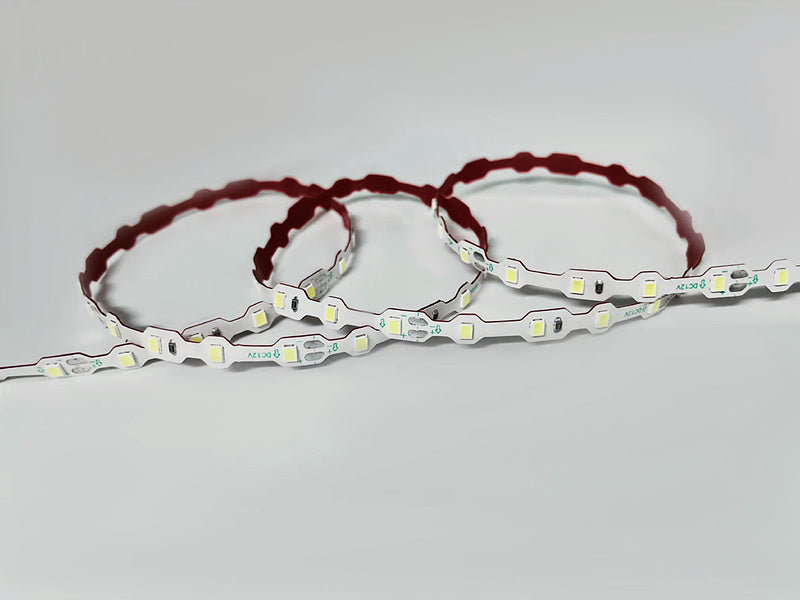

The IP65 rainproof version of the D72 high-efficiency S-type LED strip, built for mini, resin and 3D-printed letters in damp or sheltered outdoor locations. 72 LEDs per metre on a 6.6mm PCB give around 40% more brightness than a standard 60LED/m strip at the same power.
Specifications
|
Parameter |
Value |
|
Voltage |
DC 12V |
|
LED Type |
SMD 2835 |
|
LED Density |
72 LEDs/m |
|
PCB Width |
6.6mm |
|
Cutting Unit |
4 LEDs per cut |
|
Cut Length |
Every 55.56mm |
|
Power Consumption |
4.35W/m (same as the IP20 version — please confirm) |
|
Beam Angle |
120° |
|
Waterproof Rating |
IP65 (rainproof), IP20 (non-waterproof, indoor use) |
|
Colour Temperature |
3200K / 4500K / 6500K / 12000K |
|
Max Power Feed |
2m |
|
Lifespan |
50,000 hours |
|
Warranty |
Same as the IP20 version — please confirm |
|
Roll Length |
100m/roll |
|
Carton |
42 × 46 × 43cm — 2,000m per carton |
Key Features
- IP65 rainproof — safe for damp and sheltered outdoor installations
- High luminous efficiency: ~40% brighter than a standard 60LED/m strip at the same power
- Low energy consumption at the same brightness
- Ultra-low LED temperature — runs around 20°C cooler than a standard 60LED/m strip
- 2m power feed distance
Applications
- Mini letters
- Resin letters
- 3D-printed letters
- Outdoor / damp-location signage (IP65)
Packaging, MOQ & Wholesale
- Packaging: 100m per roll
- Carton: 42 × 46 × 43cm, 2,000m per carton
- MOQ: 100m/roll
- Wholesale & OEM orders welcome
