Description
Short Description

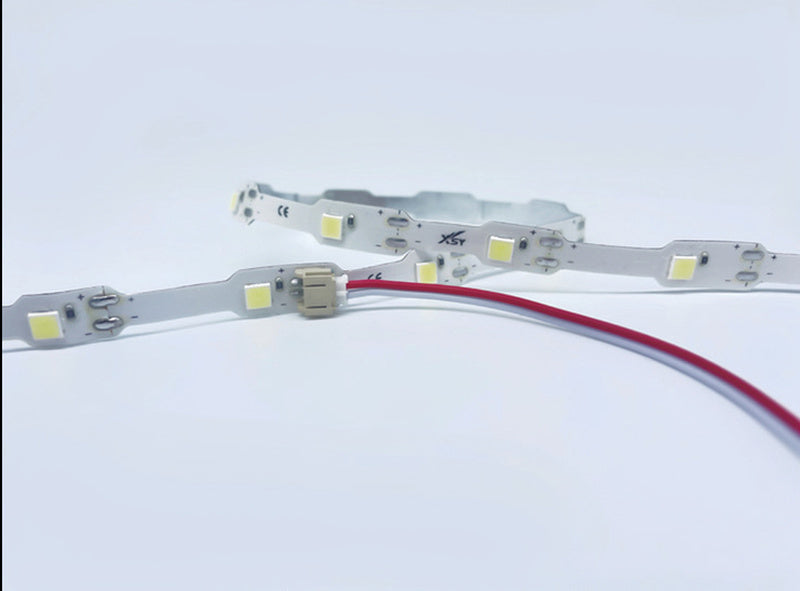

High-output S-type LED strip designed for large black-and-white, blue-and-white and stainless steel letters. 28 extra-bright 5054 LEDs per metre on a 10mm PCB, true single-LED cutting and full bendability let you follow any letter contour without soldering. Bonds directly onto metal base plates.
Specifications
|
Parameter |
Value |
|
Voltage |
DC 12V |
|
LED Type |
SMD 5054 (high brightness) |
|
LED Density |
28 LEDs/m |
|
PCB Width |
10mm |
|
Cutting Unit |
Single LED (1 LED per cut) |
|
Cut Length |
Every 35.74mm |
|
Power Consumption |
15W/m |
|
Beam Angle |
120° |
|
Waterproof Rating |
IP65 (rainproof) |
|
Colour Temperature |
6500K / 12000K |
|
Max Power Feed |
6m |
|
Lifespan |
50,000 hours |
|
Warranty |
3 years |
|
Roll Length |
100m/roll |
|
Carton |
42 × 46 × 43cm — 2,000m per carton |
Key Features
- Maintenance-free single-LED cutting
- Bends freely — follow any letter contour
- Saves labour: no soldering, no extra wiring
- Ultra-high brightness from 5054 SMD LEDs
- 6m power feed distance
Applications

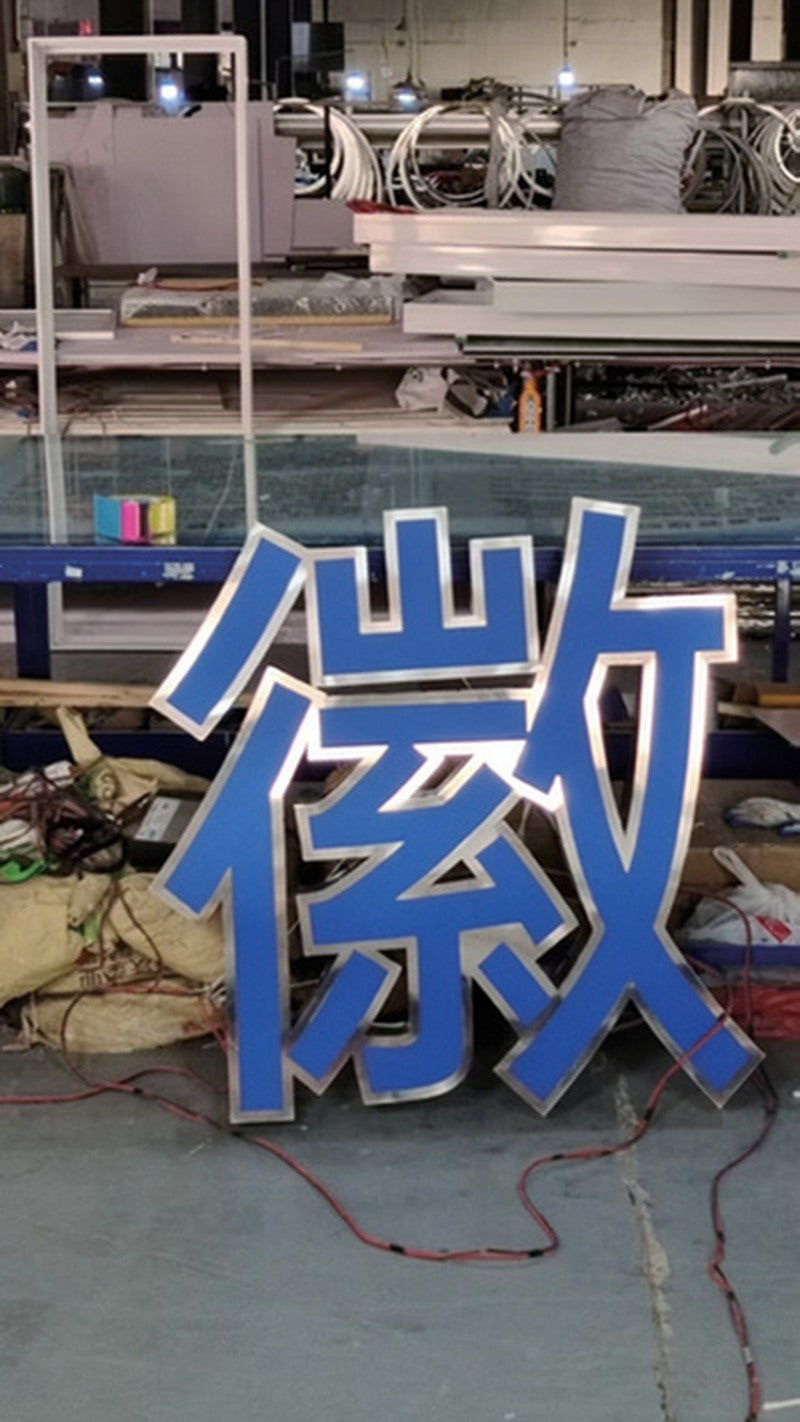

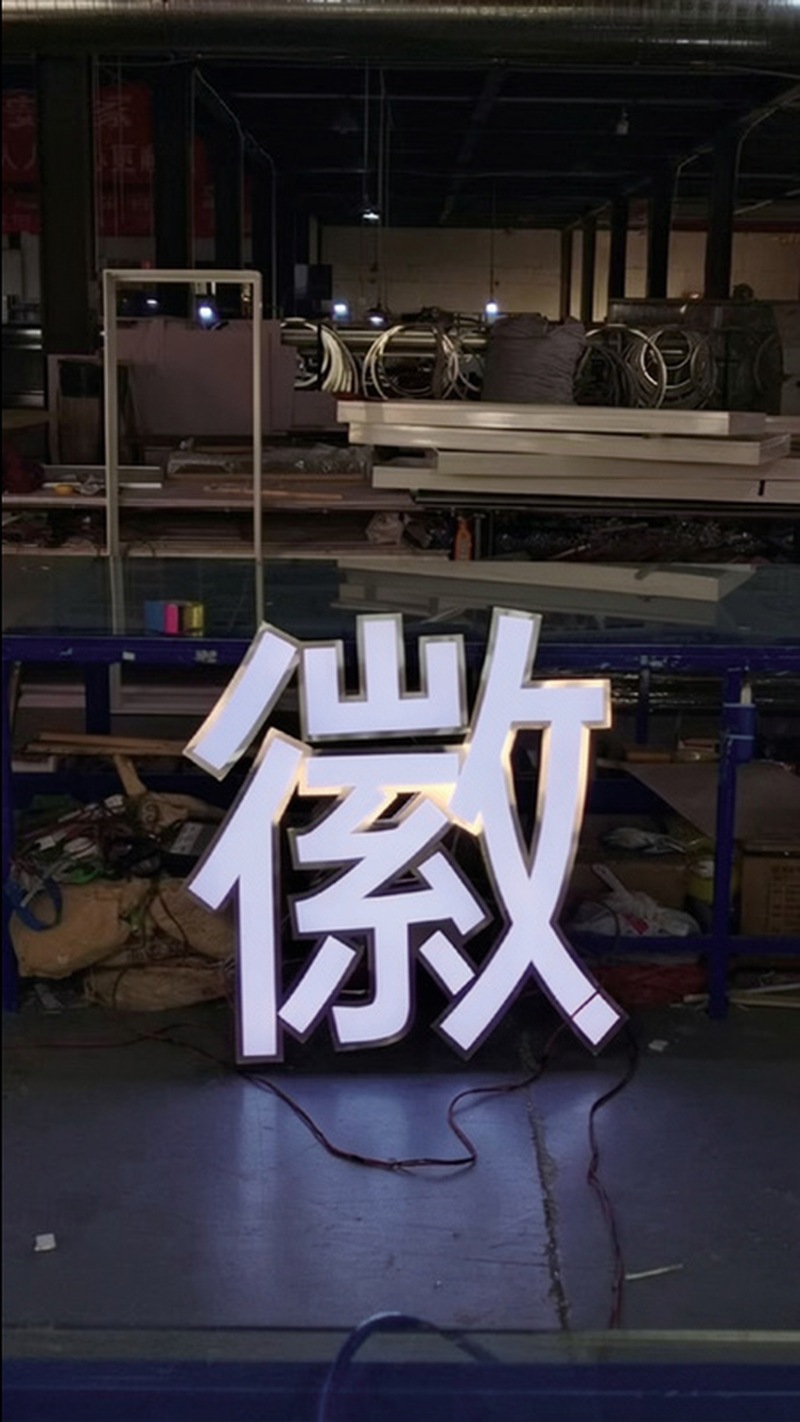

- Large black-and-white letters
- Blue-and-white letters

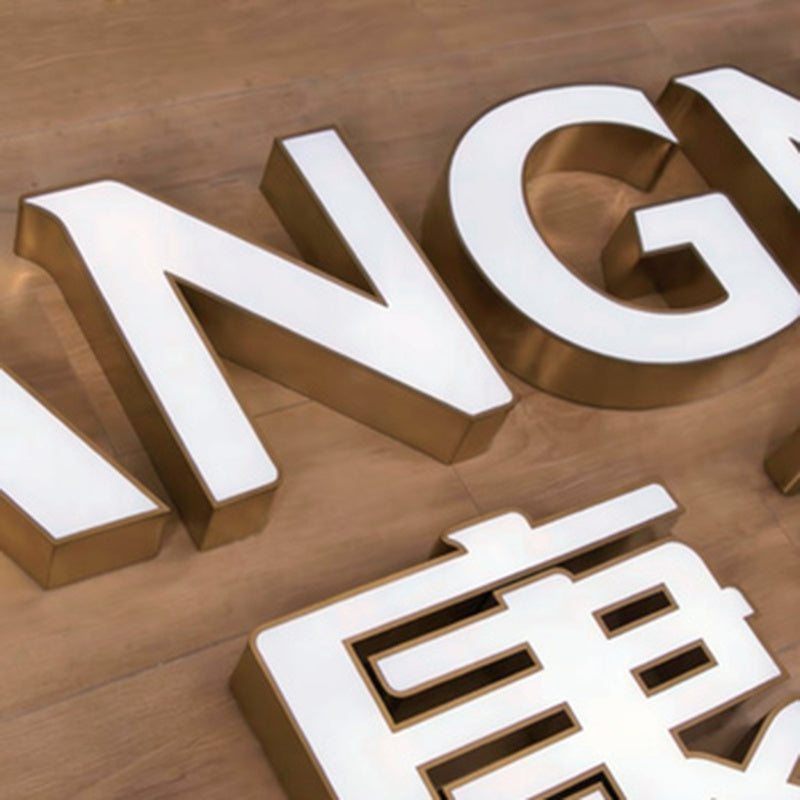

- Stainless steel letters

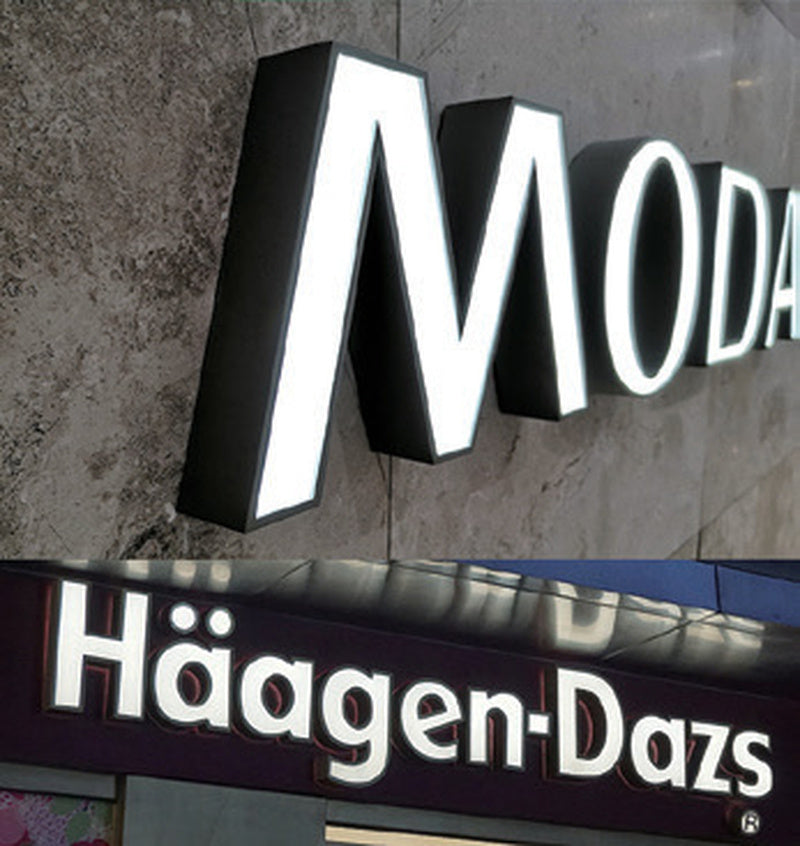

- Channel letters and light boxes
Installation Note
Recommended installation: bond onto a metal base plate for best heat dissipation and adhesion.
Packaging, MOQ & Wholesale
- Packaging: 100m per roll
- Carton: 42 × 46 × 43cm, 2,000m per carton
- MOQ: 100m/roll
-
Wholesale & OEM orders welcome
