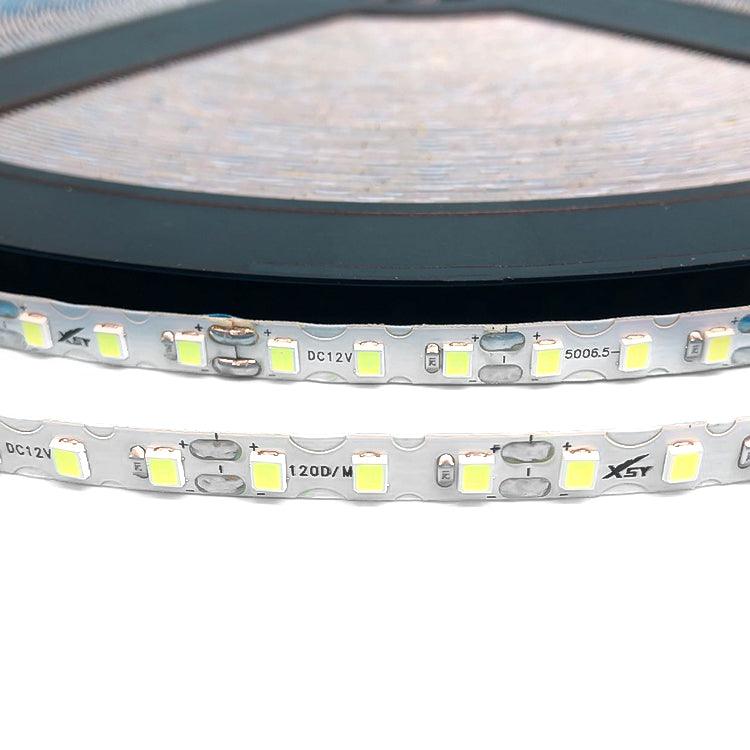

12V S Shape LED Strip Light

120 LEDs/m • 3 LEDs Per Cut • 50M Per Roll

Designed for Split Silicone Neon Flex & Custom Sign Making



---



【Banner Section】



Flexible. Bright. Reliable.

Professional LED Strip for Neon Sign Production

✔ 120 LEDs/m High Density Design
✔ 3 LEDs Per Cut (25mm)
✔ Flexible S-Type PCB
✔ DC12V Safe Voltage
✔ 50M Long Roll Packaging
✔ 8+ Years Proven Market Performance

Suitable for:

• Custom Neon Signs
• Advertising Signage
• Channel Letters
• Decorative Lighting
• Commercial Projects
• DIY Lighting Applications



---



Why Choose This S Shape LED Strip?

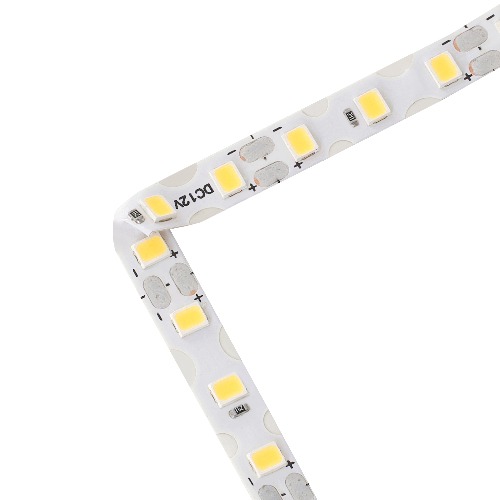

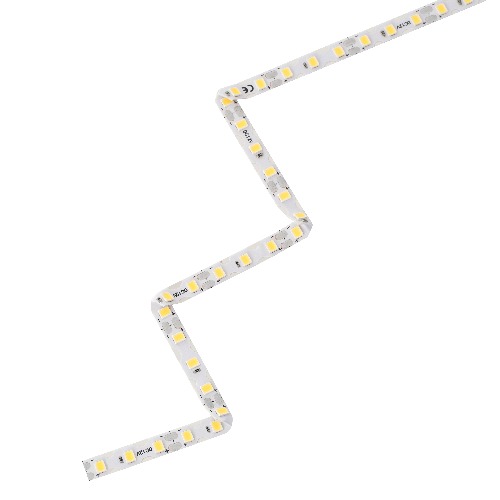

Flexible PCB for Complex Neon Shapes



The specially designed S-type flexible PCB can bend horizontally and adapt to complex shapes and curves, making it the preferred choice for split silicone neon flex manufacturing.

Benefits

✓ Easier bending and shaping

✓ Suitable for letters and logos

✓ Reduced risk of PCB cracking

✓ Smooth installation process



---



High Density 120 LEDs/m



With 120 premium LEDs per meter, the strip delivers more uniform illumination and significantly reduces visible light spots.

Advantages

• Brighter output
• Better light uniformity
• Enhanced visual appearance
• Professional signage performance



---



Mature Product with Stable Quality

This product has been continuously supplied to the market for more than 8 years.

Benefits

• Proven reliability
• Stable production process
• Consistent quality control
• Suitable for wholesale and project orders



---



Product Features

Feature 01

Flexible S-Type PCB

Suitable for complicated neon sign structures and curved designs.

Feature 02

Uniform Lighting

High-density LEDs provide smoother illumination and minimize visible dots.

Feature 03

13 Popular Color Options

Supports multiple standard colors for different project requirements.

Feature 04

Long Service Life

Up to 50,000 working hours under proper operating conditions.



---



Technical Specifications



Item	Specification
Product Name	12V 120LED S Shape LED Strip
LED Type	SMD 2835
LED Quantity	120 LEDs/m
Voltage	DC12V
Power Consumption	7.2W/m

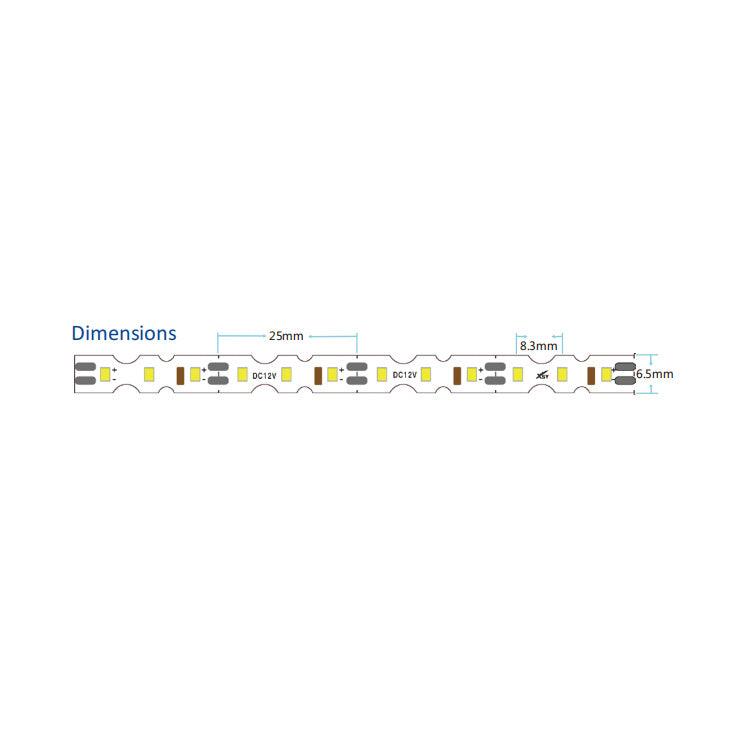

PCB Width	6mm
Cutting Unit	3 LEDs Per Cut
Cutting Distance	25mm
Beam Angle	120°
Resistor Type	External Resistor
CRI	Ra70
Luminous Flux	960-1200 lm/m
Waterproof Rating	Non-Waterproof
Operating Temperature	-20°C ~ +60°C
Lifespan	50,000 Hours
Warranty	3 Years

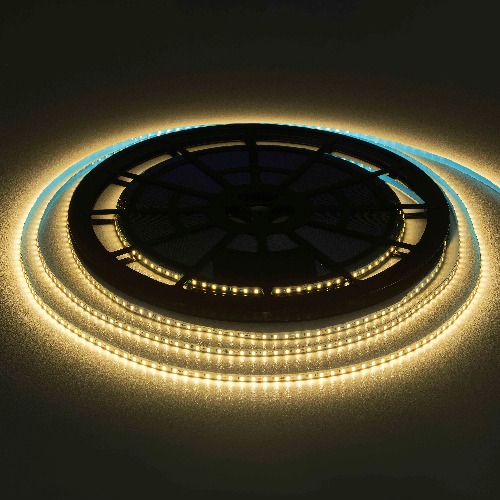

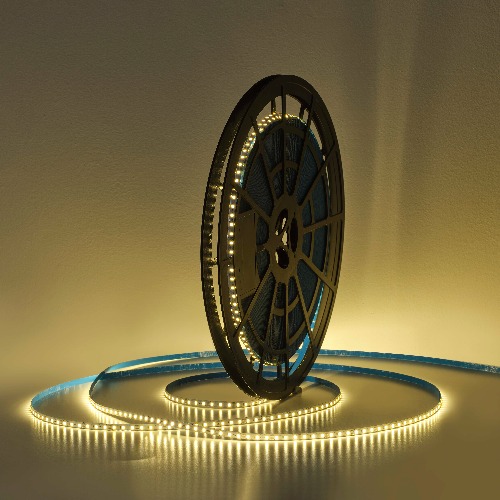

Roll Length	50M/Roll
MOQ	50M



---



Available Colors

Standard Colors Available:

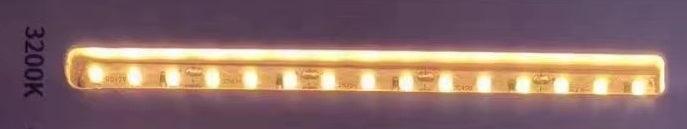

• Warm White 3200K

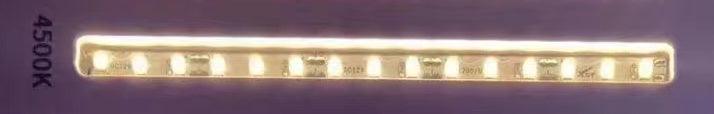

• Natural White 4500K
• Pure White 6500K

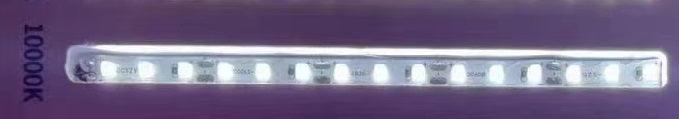

• Cool White 10000K

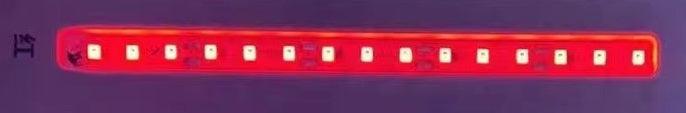

• Red

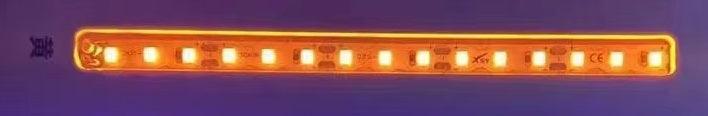

• Yellow

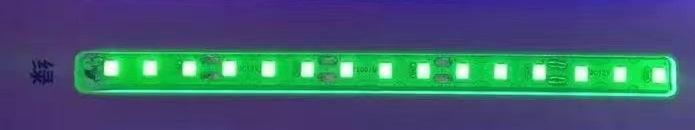

• Green

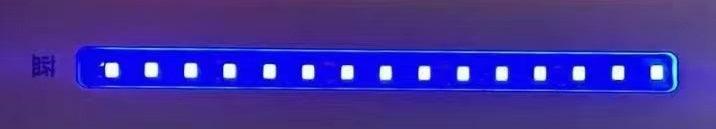

• Blue

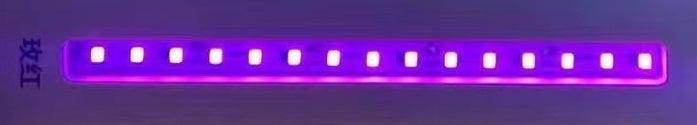

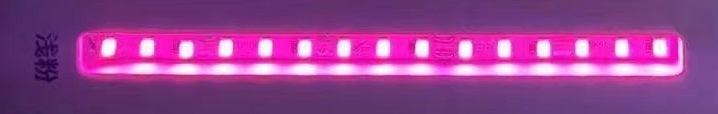

• Hot Pink
• Purple

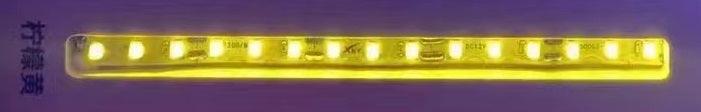

• Lemon Yellow

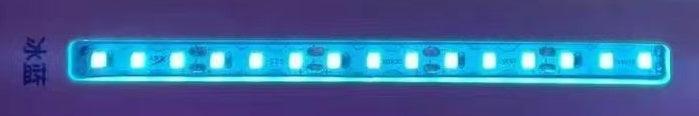

• Ice Blue

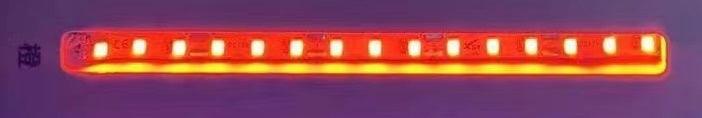

• Orange

Custom colors available upon request.



---



Recommended Materials

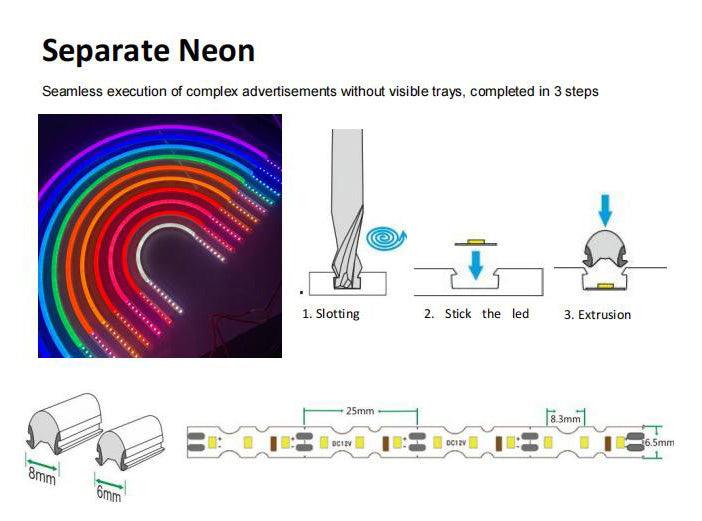

For manufacturing split neon flex products, this strip is commonly used together with:

Split Silicone Tubes

• 6mm Silicone Tube
• 8mm Silicone Tube
• 12mm Silicone Tube

Suitable for customized neon sign production.



---



Application Scenarios



Widely Used In

• Neon Sign Manufacturing
• Advertising Signage
• Commercial Decoration
• Retail Stores
• Restaurants
• Hotels
• Event Decoration
• DIY Lighting Projects



---



Easy Installation

Step 1

Measure the required length.

Step 2

Cut every 25mm according to the cutting mark.

Step 3

Connect to a DC12V LED power supply.

Step 4

Install into the silicone tube.

Step 5

Test and complete installation.



---



OEM & ODM Service

We Support:

✔ Custom Colors

✔ Custom Roll Length

✔ Custom Packaging

✔ Private Label Service

✔ Custom Cartons

✔ Static-Proof Packaging

✔ Project-Based Production

✔ Special Specifications Development



---



Packaging Information

Item	Details
Roll Length	50M
Carton Size	According to Order Quantity
Packaging	Anti-static Bag + Carton
Loading Type	Export Standard Packaging



---



FAQ

Q1: Can the strip be cut?

Yes. It can be cut every 3 LEDs (25mm).

Q2: Is it suitable for neon sign production?

Yes. It is specially designed for split silicone neon flex applications.

Q3: What voltage does it require?

DC12V constant voltage power supply.

Q4: Can you provide custom colors?

Yes. Customized colors are available.

Q5: Do you provide OEM service?

Yes. We support OEM and ODM projects.



---
